MCIMX357DVM5B footprint, schematic symbol and 3D model by NXP

Symbol

click to zoom

PCB Footprints

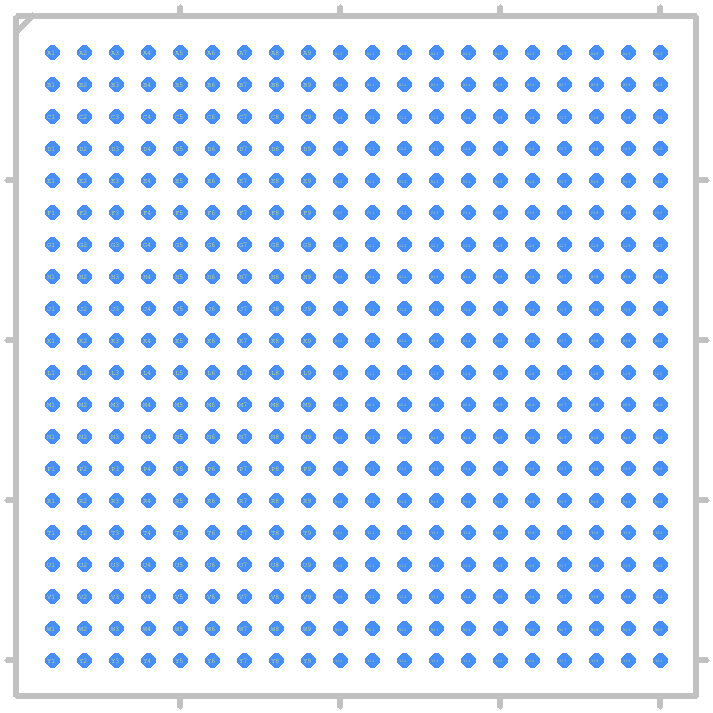

MCIMX357DVM5B - NXP PCB footprint - Other - Other - BGA400C80P20X20_1700X1700X160

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCIMX357DVM5B
Part Number MCIMX357DVM5B
Manufacturer NXP
Pin Count 400
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA400C80P20X20_1700X1700X160
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

MCIMX357DVM5B Details

Manufacturer Part Number:
MCIMX357DVM5B
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
17 X 17 MM, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, BGA-400
Country Of Origin:
Mainland China
ECCN Code:
5A992.C
HTS Code:
8542.31.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
5
Additional Feature:
IT ALSO OPERATES AT 1.22 TO 1.47 V
JESD-30 Code:
S-PBGA-B400
JESD-609 Code:
e1
Length:
17 mm
Moisture Sensitivity Level:
3
Number of Terminals:
400
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA400,20X20,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.6 mm
Supply Voltage-Max:
1.47 V
Supply Voltage-Min:
1.33 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
40
Width:
17 mm
uPs/uCs/Peripheral ICs Type:
SoC

MCIMX357DVM5B Frequently Asked Questions (FAQs)

The recommended crystal oscillator frequency for the MCIMX357DVM5B is 24 MHz, but it can also support other frequencies such as 16 MHz, 20 MHz, and 25 MHz with proper configuration.
The DDR memory interface on the MCIMX357DVM5B can be configured using the DDR Controller (DDRC) module. The configuration involves setting the memory timing parameters, clock frequency, and data bus width. Refer to the MCIMX357DVM5B reference manual and the DDR memory datasheet for more information.
The maximum operating temperature range for the MCIMX357DVM5B is -40°C to 105°C (industrial temperature range). However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
The MCIMX357DVM5B supports secure boot through its BootROM and TrustZone-M security features. Implementing secure boot involves generating a secure boot key, creating a boot image, and configuring the BootROM to authenticate the boot image. Refer to the MCIMX357DVM5B security reference manual and the NXP secure boot guide for more information.
The maximum current consumption of the MCIMX357DVM5B depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is around 350 mA at 1.2V and 532 MHz. However, this value can vary depending on the specific use case and system design.

Trust Checks

System Verified

MCIMX357DVM5B Overview

Use the download button to access the MCIMX357DVM5B schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
