MCIMX536AVV8C - NXP

Description: NXP - MCIMX536AVV8C - Microprocessor, ARM Cortex-A8 Series, 800 MHz, 0.8 V to 1.15 V, BGA-529

Download MCIMX536AVV8C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

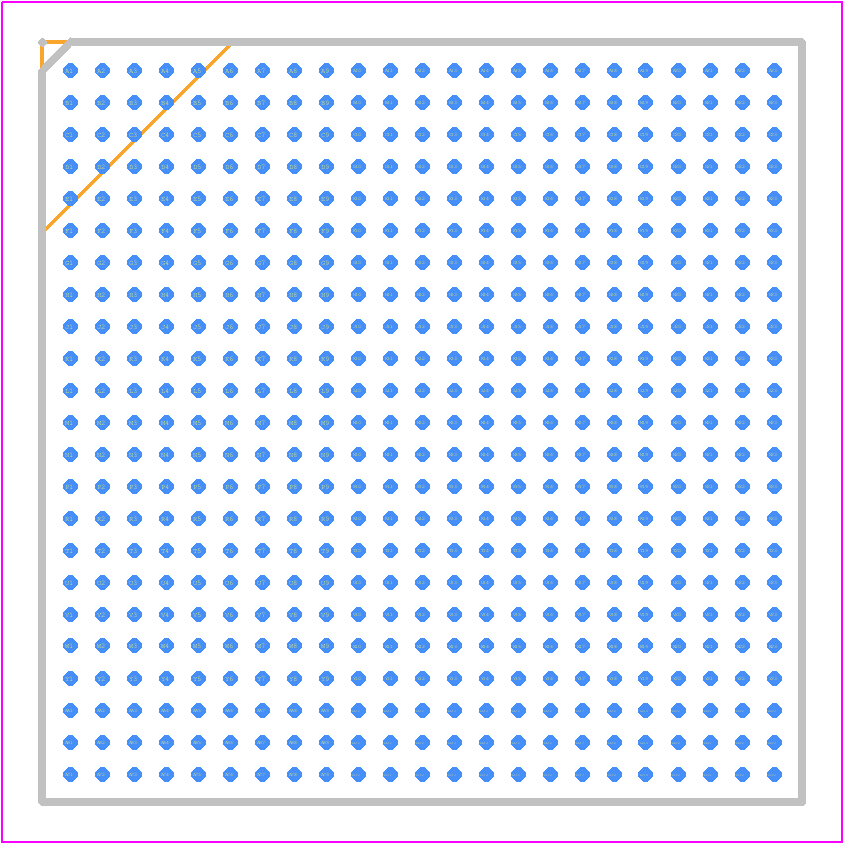

MCIMX536AVV8C - NXP PCB footprint - BGA - BGA - . 19 x 19 mm Package, 529 Solder Balls, Bottom View
click to zoom
3D Models
MCIMX536AVV8C - NXP  - 3D model - BGA - . 19 x 19 mm Package, 529 Solder Balls, Bottom View
click to zoom

MCIMX536AVV8C Details

  • Manufacturer Part Number:

    MCIMX536AVV8C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TEBGA-529

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B529

  • JESD-609 Code:

    e2

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    529

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX536AVV8C Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX536AVV8C is -40°C to 105°C.
  • The clock settings for the MCIMX536AVV8C can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX53 Reference Manual for detailed information on clock configuration.
  • The maximum frequency of the CPU on the MCIMX536AVV8C is 800 MHz, while the maximum frequency of other peripherals varies depending on the peripheral, but is typically in the range of 200-400 MHz.
  • Power management on the MCIMX536AVV8C can be implemented using the Power Management Unit (PMU) and the Clock Control Module (CCM). The PMU provides various power modes, including run, wait, and stop modes, while the CCM allows for dynamic voltage and frequency scaling.
  • The MCIMX536AVV8C has a range of interfaces, including USB OTG, SATA, PCIe, Ethernet, SD/MMC, and UART, among others.
