Part Image

MCIMX6D6AVT10AE - NXP

Description: Processors - Application Specialised i.MX6D ROM Perf Enhan,1.05 V to 1.5 V,- 40 C,+ 125 C

Download MCIMX6D6AVT10AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6D6AVT10AE - NXP - PCB symbol
click to zoom
PCB Footprints

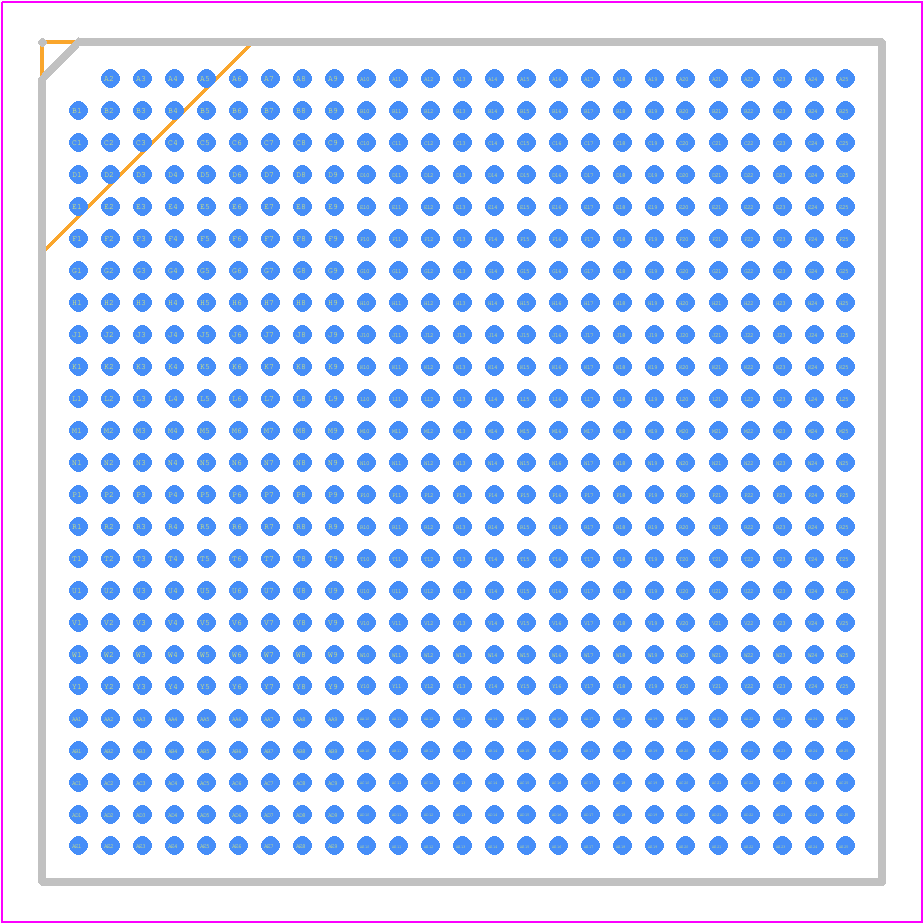

MCIMX6D6AVT10AE - NXP PCB footprint - BGA - BGA - SOT1643-1
click to zoom
3D Models
MCIMX6D6AVT10AE - NXP - 3D model - BGA - SOT1643-1
click to zoom

MCIMX6D6AVT10AE Details

  • Manufacturer Part Number:

    MCIMX6D6AVT10AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6D6AVT10AE Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_LOW, and then the core voltage (VDD_CORE). This ensures that the internal voltage regulators are powered up correctly.
  • The clock tree can be configured using the Clock Control Module (CCM) registers. The CCM registers control the clock sources, dividers, and multiplexers. Refer to the i.MX6D Applications Processor Reference Manual for detailed information on clock tree configuration.
  • The maximum operating temperature range for the MCIMX6D6AVT10AE is -40°C to 105°C. However, the device can be operated at temperatures above 105°C for short periods of time, but this may affect its reliability and lifespan.
  • Secure boot on the MCIMX6D6AVT10AE can be implemented using the High Assurance Boot (HAB) mechanism. HAB provides a secure boot process that ensures the authenticity and integrity of the boot loader and operating system. Refer to the i.MX6D Security Reference Manual for detailed information on implementing secure boot.
  • The maximum frequency for the DDR interface on the MCIMX6D6AVT10AE is 533 MHz. However, the actual frequency may be limited by the DDR memory module used and the system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6D6AVT10AE Overview

Use the download button to access the MCIMX6D6AVT10AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
