MCIMX6G2AVM07AB - NXP

Description: NXP - MCIMX6G2AVM07AB - MPU, 32BIT, 700MHZ, LFBGA-289

Download MCIMX6G2AVM07AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

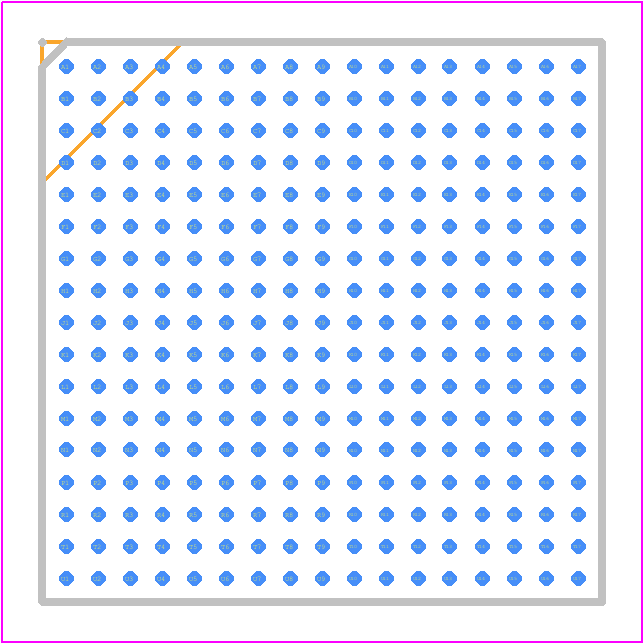

MCIMX6G2AVM07AB - NXP PCB footprint - BGA - BGA - MCIMX6G2AVM07AB
click to zoom
3D Models
MCIMX6G2AVM07AB - NXP  - 3D model - BGA - MCIMX6G2AVM07AB
click to zoom

MCIMX6G2AVM07AB Details

  • Manufacturer Part Number:

    MCIMX6G2AVM07AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-289

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2017-05-31

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B289

  • JESD-609 Code:

    e2

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.32 mm

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6G2AVM07AB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6G2AVM07AB is -40°C to 105°C.
  • The clock settings for the MCIMX6G2AVM07AB can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1 GHz, and the maximum frequency of the GPU is 400 MHz.
  • The HDMI interface on the MCIMX6G2AVM07AB can be enabled by configuring the HDMI PHY and controller registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6G2AVM07AB varies depending on the operating mode and frequency. The typical power consumption is around 2-3W at 1 GHz CPU frequency.
