MCIMX6G2DVM05AB - NXP

Description: NXP - MCIMX6G2DVM05AB - MPU, 32BIT, 500MHZ, LFBGA-289

Download MCIMX6G2DVM05AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

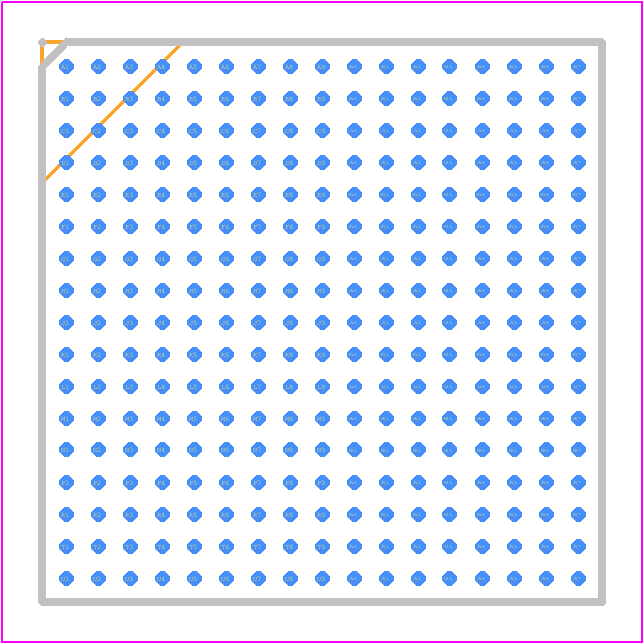

MCIMX6G2DVM05AB - NXP PCB footprint - BGA - BGA - 289 PIN BGA
click to zoom
3D Models
MCIMX6G2DVM05AB - NXP  - 3D model - BGA - 289 PIN BGA
click to zoom

MCIMX6G2DVM05AB Details

  • Manufacturer Part Number:

    MCIMX6G2DVM05AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-289

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2017-05-31

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B289

  • JESD-609 Code:

    e1

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.32 mm

  • Supply Voltage-Max:

    1.3 V

  • Supply Voltage-Min:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6G2DVM05AB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MCIMX6G2DVM05AB is -40°C to 105°C.
  • The clock settings for the MCIMX6G2DVM05AB can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6Dual/6Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1 GHz, and the maximum frequency of the GPU is 400 MHz.
  • Power management on the MCIMX6G2DVM05AB can be implemented using the Power Management Unit (PMU) and the Dynamic Voltage and Frequency Scaling (DVFS) feature. Refer to the i.MX6Dual/6Quad Applications Processor Reference Manual for more information.
  • The maximum amount of RAM that can be used with the MCIMX6G2DVM05AB is 4 GB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6G2DVM05AB Overview

Use the download button to access the MCIMX6G2DVM05AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
