MCIMX6L2EVN10AC - NXP

Description: Processors - Application Specialized i.MX 6 series 32-bit MPU, ARM Cortex-A9 core, 1GHz, MAPBGA 432

Download MCIMX6L2EVN10AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6L2EVN10AC - NXP - PCB symbol
click to zoom
PCB Footprints

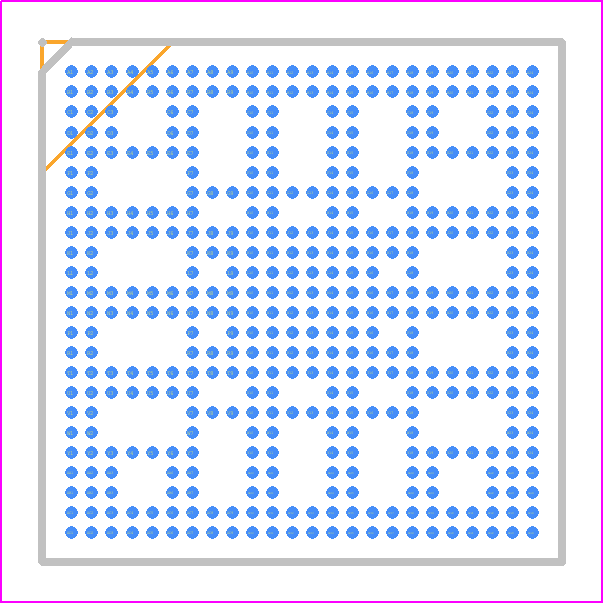

MCIMX6L2EVN10AC - NXP PCB footprint - BGA - BGA - 13 x 13 mm, 0.5 mm Pitch
click to zoom
3D Models
MCIMX6L2EVN10AC - NXP - 3D model - BGA - 13 x 13 mm, 0.5 mm Pitch
click to zoom

MCIMX6L2EVN10AC Details

  • Manufacturer Part Number:

    MCIMX6L2EVN10AC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-432

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2017-10-13

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    S-PBGA-B432

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    432

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA432,24X24,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.375 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6L2EVN10AC Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the 1.2V to 1.35V core voltage (VDD_CORE), followed by the 2.5V to 3.3V I/O voltage (VDD_IO). This ensures that the internal voltage regulators are properly enabled and stabilized before the CPU and peripherals are powered up.
  • The MCIMX6L2EVN10AC has multiple clock sources, including the internal oscillator, external crystal oscillator, and PLLs. The clock configuration is done through the Clock Control Module (CCM) registers. The recommended approach is to use the internal oscillator as the clock source for the CPU and peripherals, and then switch to an external crystal oscillator or PLL once the system is stable.
  • The MCIMX6L2EVN10AC has an industrial temperature range of -40°C to 105°C, making it suitable for use in a wide range of applications, including industrial control systems, automotive systems, and consumer electronics.
  • The MCIMX6L2EVN10AC has a built-in Secure Boot mechanism that uses a combination of hardware and software to ensure the authenticity and integrity of the boot process. This involves generating a secure boot key, creating a secure boot image, and configuring the Boot Mode Controller (BMC) to use the secure boot mechanism.
  • The MCIMX6L2EVN10AC has a 32-bit DDR3L interface that can support up to 2GB of RAM. However, the actual amount of RAM that can be used depends on the specific application and the memory configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6L2EVN10AC Overview

Use the download button to access the MCIMX6L2EVN10AC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
