MCIMX6Q6AVT10ADR - NXP

Description: Prozessoren - Spezielle Anwendung i.MX 6 series 32-bit MPU, Quad ARM Cortex-A9 core, 1GHz, FCBGA 624

Download MCIMX6Q6AVT10ADR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

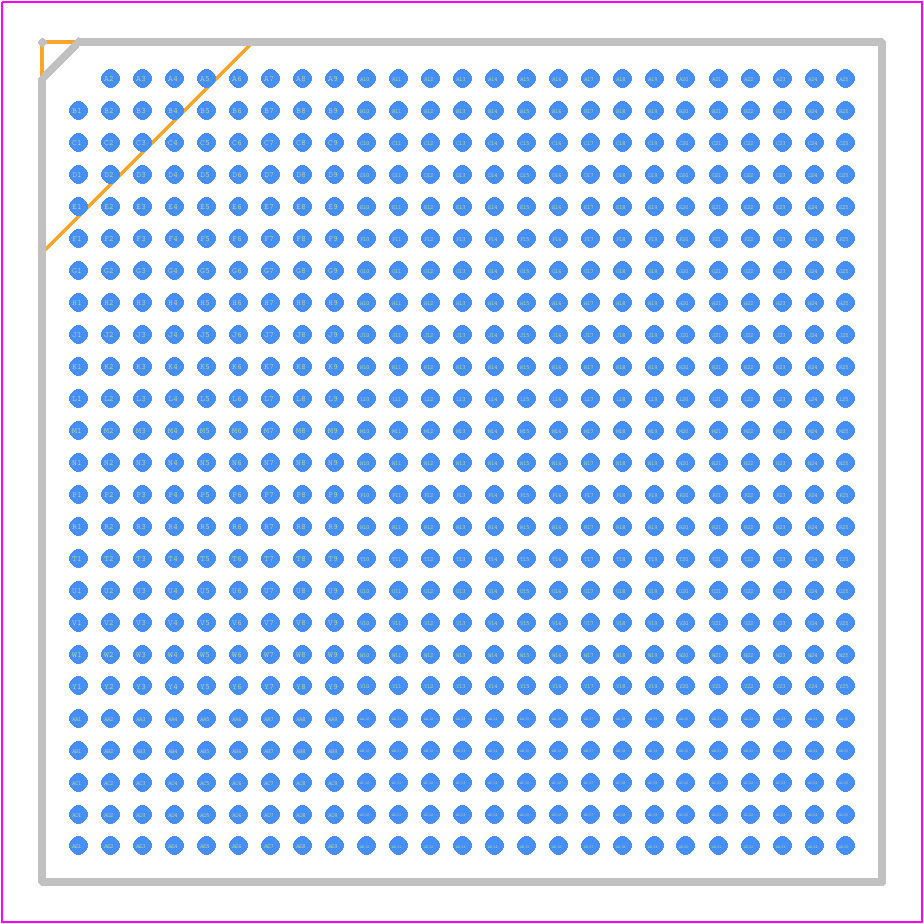

MCIMX6Q6AVT10ADR - NXP PCB footprint - BGA - BGA - SOT1643-1
click to zoom
3D Models
MCIMX6Q6AVT10ADR - NXP  - 3D model - BGA - SOT1643-1
click to zoom

MCIMX6Q6AVT10ADR Details

  • Manufacturer Part Number:

    MCIMX6Q6AVT10ADR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2018-11-13

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Additional Feature:

    24MHZ NOMINAL EXTERNAL FREQUENCY AVAILABLE

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6Q6AVT10ADR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6Q6AVT10ADR is -40°C to 105°C.
  • The clock settings for the MCIMX6Q6AVT10ADR can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz, and the maximum frequency of the GPU is 532 MHz.
  • Power management on the MCIMX6Q6AVT10ADR can be implemented using the Power Management Unit (PMU) and the Dynamic Voltage and Frequency Scaling (DVFS) feature. Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The MCIMX6Q6AVT10ADR supports up to 4 GB of RAM and up to 64 GB of flash memory.
