MCIMX6QP5EVT2AA - NXP

Description: Processors - Application Specialized i.MX 6QuadPlus MPU, 4x ARM Cortex-A9, 1.2GHz, FCPBGA 21x21, GPU, VPU, CSI, PCIe, ENET, USB, comm

Download MCIMX6QP5EVT2AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6QP5EVT2AA - NXP - PCB symbol
click to zoom
PCB Footprints

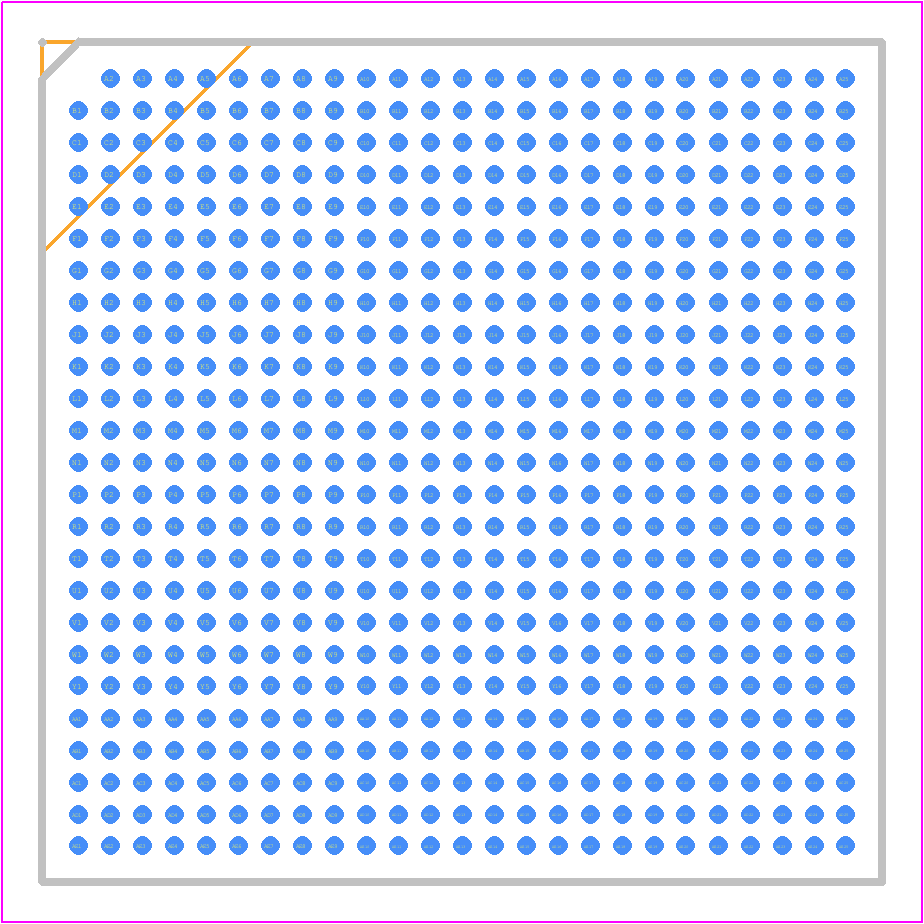

MCIMX6QP5EVT2AA - NXP PCB footprint - BGA - BGA - 624-BGA
click to zoom
3D Models
MCIMX6QP5EVT2AA - NXP - 3D model - BGA - 624-BGA
click to zoom

MCIMX6QP5EVT2AA Details

  • Manufacturer Part Number:

    MCIMX6QP5EVT2AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6QP5EVT2AA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6QP5EVT2AA is -40°C to 105°C.
  • The clock settings for the MCIMX6QP5EVT2AA can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz and the maximum frequency of the GPU is 400 MHz.
  • The HDMI interface on the MCIMX6QP5EVT2AA can be enabled by configuring the HDMI PHY and controller registers. Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6QP5EVT2AA varies depending on the operating frequency and usage scenario. Refer to the i.MX6 Quad Applications Processor Datasheet for more information on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6QP5EVT2AA Overview

Use the download button to access the MCIMX6QP5EVT2AA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
