Part Image

MCIMX6QP5EYM1AB - NXP

Description: Processors - Application Specialized i.MX 6 series 32-bit MPU, Quad ARM Cortex-A9 core, 1GHz, FCBGA 624

Download MCIMX6QP5EYM1AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

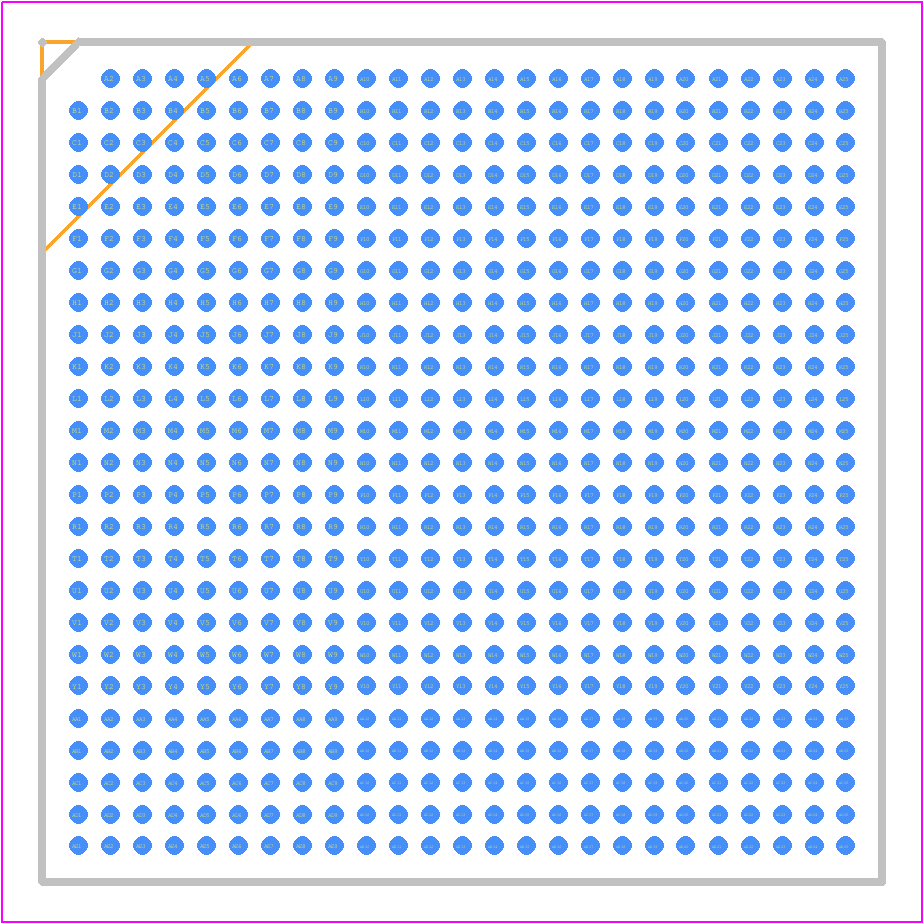

MCIMX6QP5EYM1AB - NXP PCB footprint - BGA - BGA - 21 x 21 X 0.8
click to zoom
3D Models
MCIMX6QP5EYM1AB - NXP  - 3D model - BGA - 21 x 21 X 0.8
click to zoom

MCIMX6QP5EYM1AB Details

  • Manufacturer Part Number:

    MCIMX6QP5EYM1AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Additional Feature:

    EACH GPIO MODULE SUPPORTS 32 BITS OF I/O.

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6QP5EYM1AB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6QP5EYM1AB is -40°C to 105°C.
  • The clock settings for the MCIMX6QP5EYM1AB can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz, and the maximum frequency of the GPU is 400 MHz.
  • Power management on the MCIMX6QP5EYM1AB can be implemented using the Power Management Unit (PMU) and the System Controller Unit (SCU). Refer to the i.MX6 Quad Applications Processor Reference Manual for more information.
  • The MCIMX6QP5EYM1AB supports up to 4 GB of RAM and up to 64 GB of flash memory.
