Part Image

MCIMX6QP7CVT8AB - NXP

Description: Processors - Application Specialized i.MX 6QP ROM Enhan

Download MCIMX6QP7CVT8AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

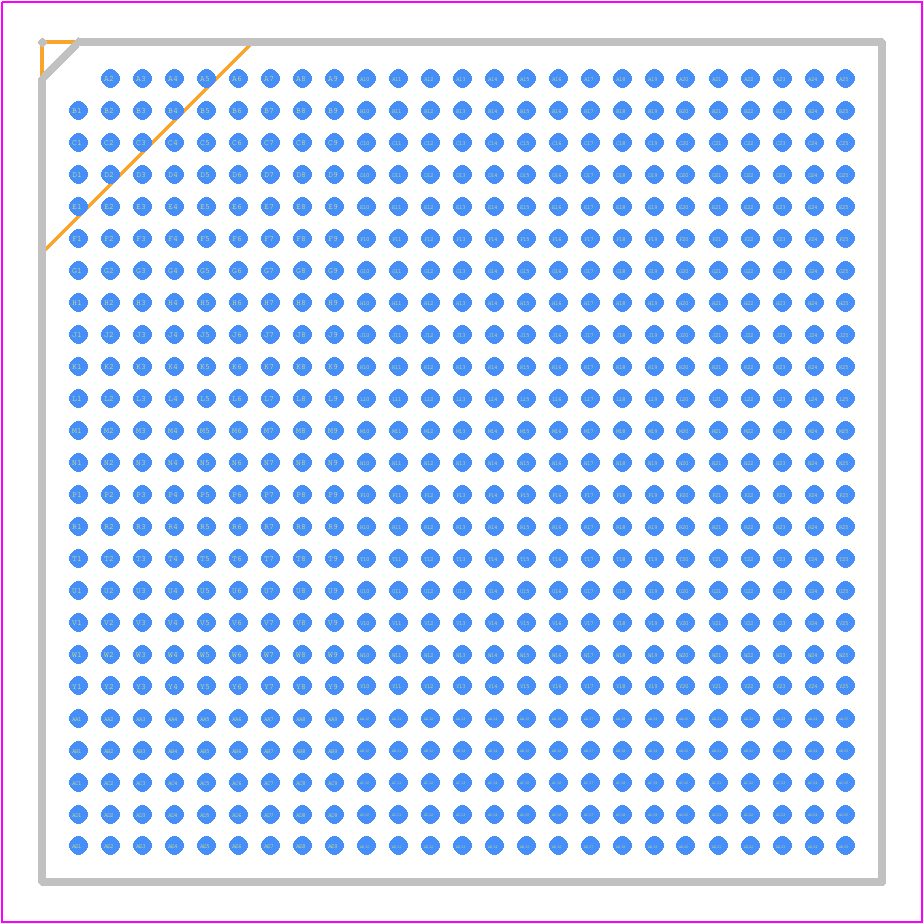

MCIMX6QP7CVT8AB - NXP PCB footprint - BGA - BGA - SOT1643-1_2026-1
click to zoom
3D Models
MCIMX6QP7CVT8AB - NXP  - 3D model - BGA - SOT1643-1_2026-1
click to zoom

MCIMX6QP7CVT8AB Details

  • Manufacturer Part Number:

    MCIMX6QP7CVT8AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.275 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6QP7CVT8AB Frequently Asked Questions (FAQs)

  • The MCIMX6QP7CVT8AB has an operating temperature range of -40°C to 105°C.
  • The DDR memory interface can be configured using the DDR Controller (DDRC) module. Refer to the i.MX6 Quad Applications Processor Reference Manual for detailed configuration and timing settings.
  • The MCIMX6QP7CVT8AB has a maximum clock speed of 1.2 GHz.
  • The MCIMX6QP7CVT8AB has a Power Management Unit (PMU) that provides various power modes, including Run, Wait, and Stop modes. Refer to the i.MX6 Quad Applications Processor Reference Manual for detailed power management implementation.
  • The MCIMX6QP7CVT8AB has a range of interfaces, including USB, SATA, PCIe, HDMI, LVDS, and more. Refer to the datasheet for a complete list of interfaces and their configurations.
