MCIMX6S6AVM08AD - NXP

Description: Processors - Application Specialized i.MX6Solo ROM Perf Enhan Operating Supply Voltage:1.5 V Minimum Operating Temperature:

Download MCIMX6S6AVM08AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6S6AVM08AD - NXP - PCB symbol
click to zoom
PCB Footprints

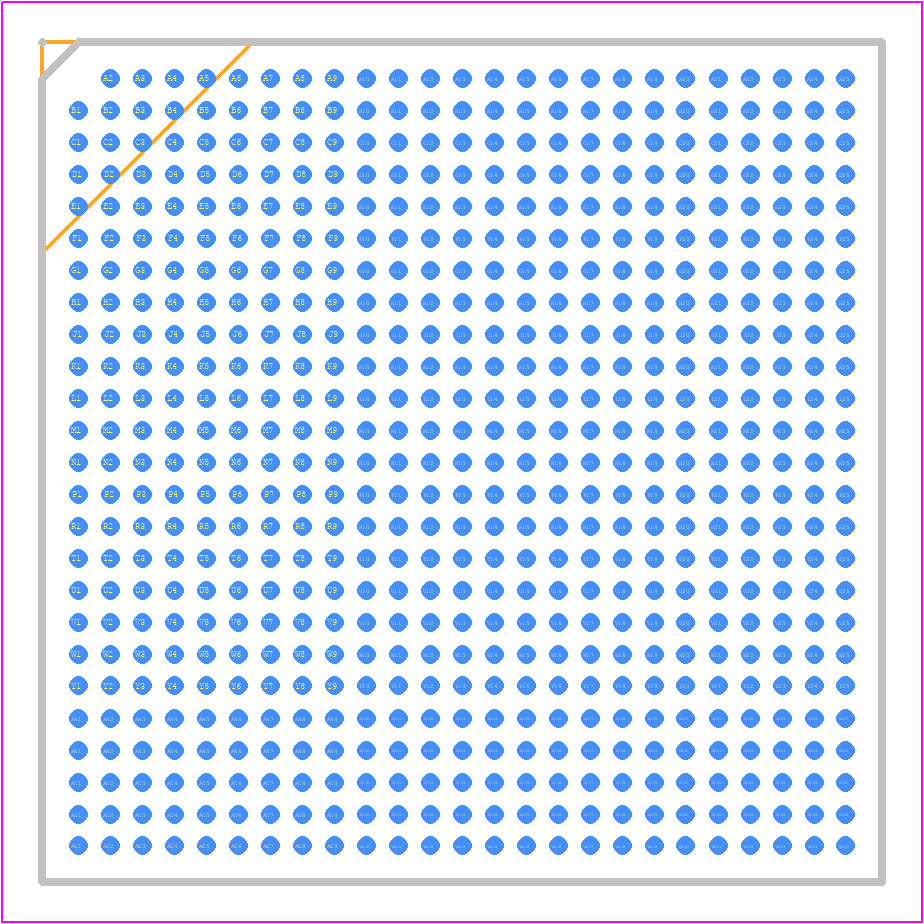

MCIMX6S6AVM08AD - NXP PCB footprint - BGA - BGA - SOT1529- 1
click to zoom
3D Models
MCIMX6S6AVM08AD - NXP - 3D model - BGA - SOT1529- 1
click to zoom

MCIMX6S6AVM08AD Details

  • Manufacturer Part Number:

    MCIMX6S6AVM08AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-624

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-09-22

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Additional Feature:

    24 MHZ NOMINAL XTAL FREQUENCY AVAILABLE

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.275 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6S6AVM08AD Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_LOW, and then the core voltage (VDD_CORE). This ensures that the internal voltage regulators are powered up correctly.
  • The clock sources can be configured using the Clock Controller (CCM) module. The CCM module allows you to select the clock source, configure the clock frequency, and enable/disable clock outputs. Refer to the CCM chapter in the reference manual for more details.
  • The maximum operating temperature range for the MCIMX6S6AVM08AD is -40°C to 105°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
  • Secure boot can be implemented using the Boot Mode Controller (BMC) and the High-Assurance Boot (HAB) module. The BMC selects the boot mode, and the HAB module verifies the authenticity of the boot loader and kernel. Refer to the Security chapter in the reference manual for more details.
  • The MCIMX6S6AVM08AD can address up to 4GB of RAM. However, the actual amount of RAM that can be used depends on the specific application and the memory configuration.
