MCIMX6S7CVM08AB - NXP

Description: Processors - Application Specialized i.MX 6 series 32-bit MPU, ARM Cortex-A9 core, 800MHz, MAPBGA 624

Download MCIMX6S7CVM08AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6S7CVM08AB - NXP - PCB symbol
click to zoom
PCB Footprints

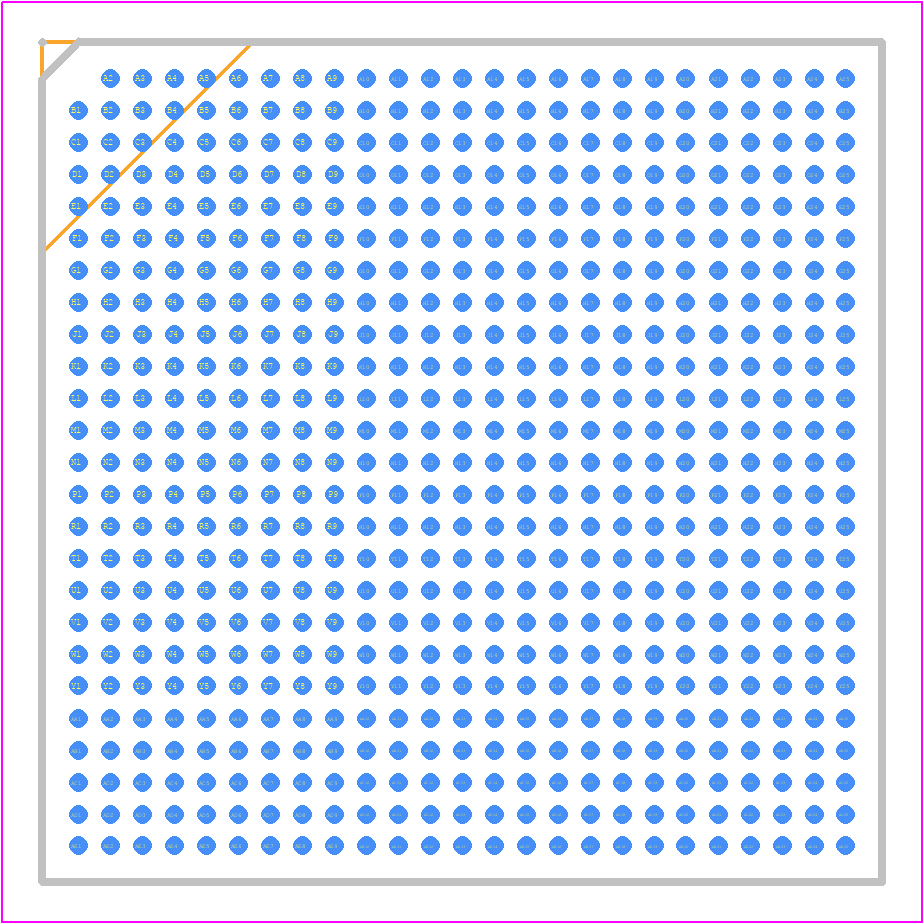

MCIMX6S7CVM08AB - NXP PCB footprint - BGA - BGA - SOT1529-1
click to zoom
3D Models
MCIMX6S7CVM08AB - NXP - 3D model - BGA - SOT1529-1
click to zoom

MCIMX6S7CVM08AB Details

  • Manufacturer Part Number:

    MCIMX6S7CVM08AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MABGA-624

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Additional Feature:

    24 MHZ NOMINAL XTAL FREQUENCY AVAILABLE

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.275 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6S7CVM08AB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6S7CVM08AB is -40°C to 105°C.
  • The clock settings for the MCIMX6S7CVM08AB can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6Solo Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1 GHz, and the maximum frequency of other peripherals such as the GPU, VPU, and DDR depends on the specific use case and system design.
  • Power management on the MCIMX6S7CVM08AB can be implemented using the Power Management Unit (PMU) and the Dynamic Voltage and Frequency Scaling (DVFS) feature. Refer to the i.MX6Solo Applications Processor Reference Manual for more information.
  • The MCIMX6S7CVM08AB supports several boot modes, including booting from NAND flash, eMMC, SD/MMC, and UART. The boot mode can be selected using the boot mode pins or through software configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6S7CVM08AB Overview

Use the download button to access the MCIMX6S7CVM08AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
