Part Image

MCIMX6U5DVM10AC - NXP

Description: Microprocessors - MPU i.MX 6 series 32-bit MPU, Dual ARM Cortex-A9 core, 1GHz, MAPBGA 624

Download MCIMX6U5DVM10AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

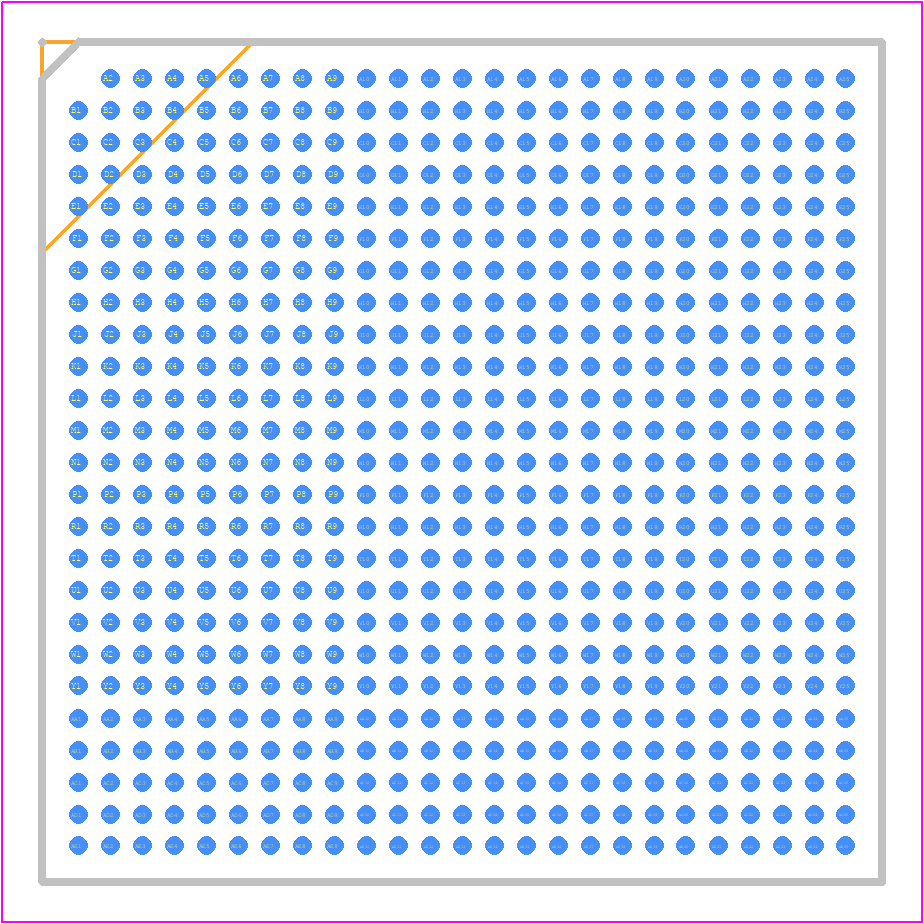

MCIMX6U5DVM10AC - NXP PCB footprint - BGA - BGA - SOT1529- 1
click to zoom
3D Models
MCIMX6U5DVM10AC - NXP  - 3D model - BGA - SOT1529- 1
click to zoom

MCIMX6U5DVM10AC Details

  • Manufacturer Part Number:

    MCIMX6U5DVM10AC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-624

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6U5DVM10AC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6U5DVM10AC is -40°C to 105°C.
  • The clock settings for the MCIMX6U5DVM10AC can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 528 MHz, and the maximum frequency of the GPU is 246 MHz.
  • The DDR3 interface on the MCIMX6U5DVM10AC can be enabled by configuring the DDR3 PHY registers and the Memory Controller registers. Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6U5DVM10AC varies depending on the operating frequency and voltage. The typical power consumption is around 1.2W at 528 MHz and 1.35V.
