MCIMX6U5DVM10ADR - NXP

Description: IC MPU I.MX6DL 1.0GHZ 624MAPBGA

Download MCIMX6U5DVM10ADR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6U5DVM10ADR - NXP - PCB symbol
click to zoom
PCB Footprints

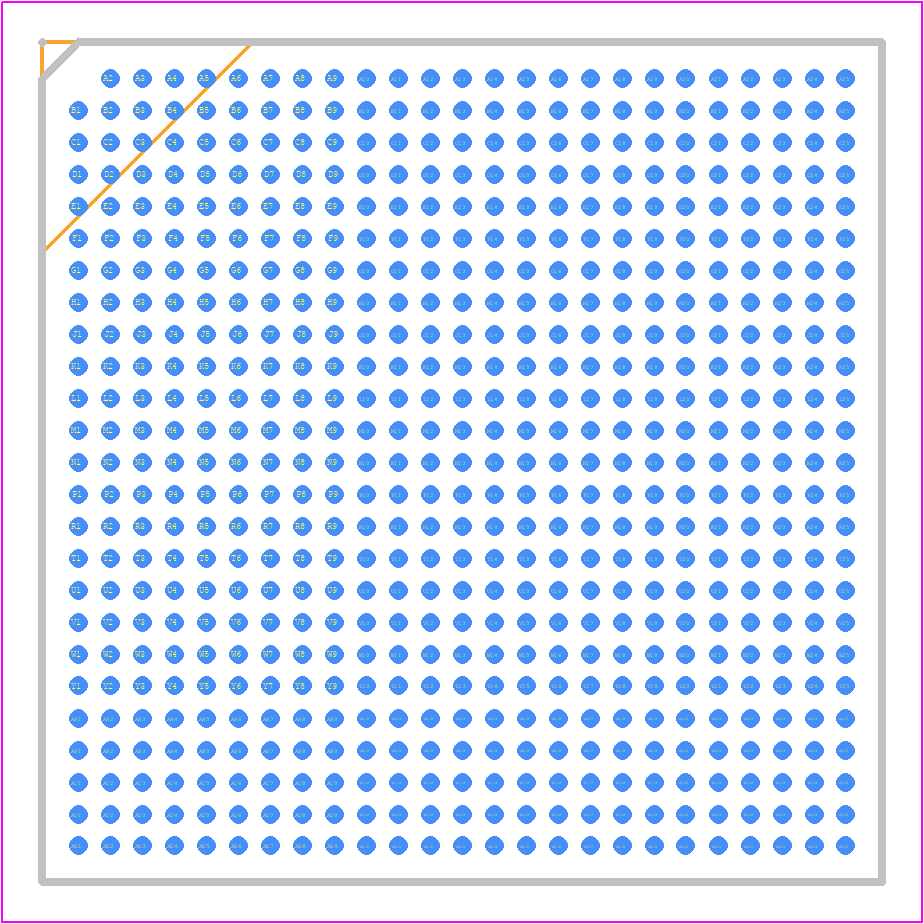

MCIMX6U5DVM10ADR - NXP PCB footprint - BGA - BGA - 21 x 21, 0.8 mm BGA 624
click to zoom
3D Models
MCIMX6U5DVM10ADR - NXP - 3D model - BGA - 21 x 21, 0.8 mm BGA 624
click to zoom

MCIMX6U5DVM10ADR Details

  • Manufacturer Part Number:

    MCIMX6U5DVM10ADR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-624

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6U5DVM10ADR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MCIMX6U5DVM10ADR is -40°C to 105°C.
  • The clock settings for the MCIMX6U5DVM10ADR can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU on the MCIMX6U5DVM10ADR is 528 MHz, while the maximum frequency of other peripherals such as the GPU, VPU, and DDR depends on the specific peripheral and the system configuration.
  • Power management on the MCIMX6U5DVM10ADR can be implemented using the Power Management Unit (PMU) and the System Controller Unit (SCU). Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The MCIMX6U5DVM10ADR supports several boot modes, including booting from NAND flash, eMMC, SD/MMC, and UART. The boot mode can be selected using the Boot Mode Select (BMS) pins.
