MCIMX6U8DVM10AD - NXP

Description: SOC i.MX 6DualLite ARM Cortex A9 40nm 624-Pin LFBGA Tray

Download MCIMX6U8DVM10AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

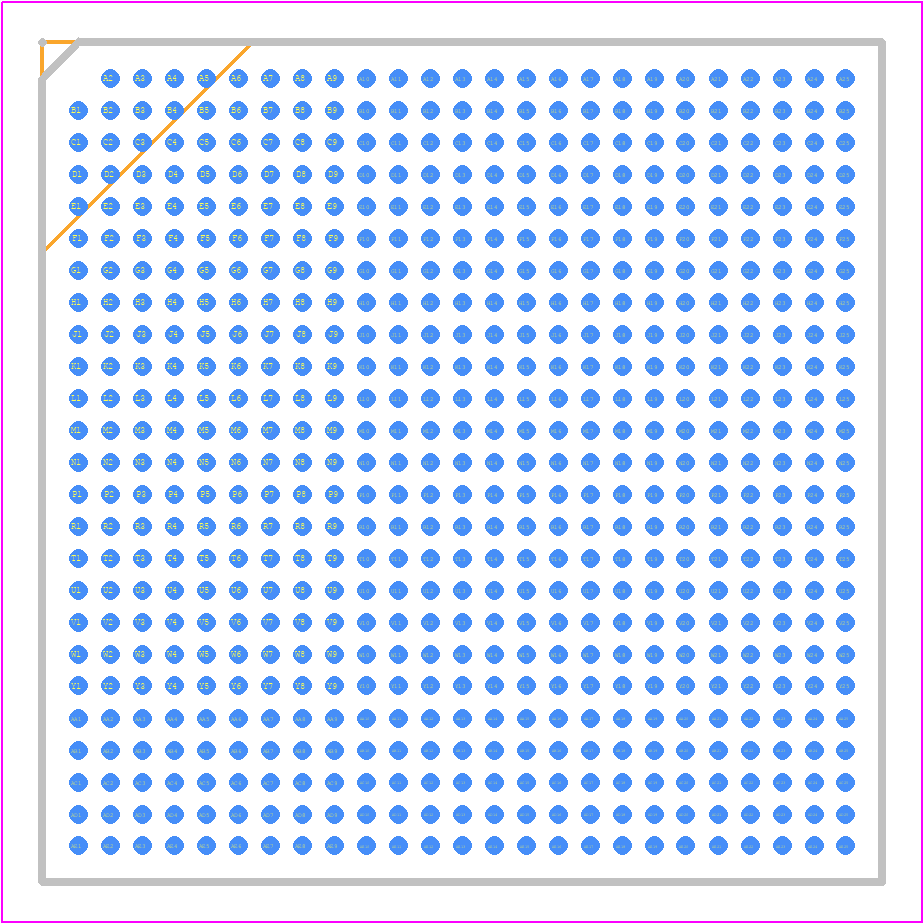

MCIMX6U8DVM10AD - NXP PCB footprint - BGA - BGA - 21 x 21, 0.8 mm BGA 624
click to zoom
3D Models
MCIMX6U8DVM10AD - NXP  - 3D model - BGA - 21 x 21, 0.8 mm BGA 624
click to zoom

MCIMX6U8DVM10AD Details

  • Manufacturer Part Number:

    MCIMX6U8DVM10AD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MABGA-624

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6U8DVM10AD Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6U8DVM10AD is -40°C to 105°C.
  • The clock settings for the MCIMX6U8DVM10AD can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 528 MHz, and the maximum frequency of the GPU is 282 MHz.
  • The DDR3L memory interface can be enabled by configuring the DDR3L PHY registers and the Memory Controller registers. Refer to the i.MX6UL Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6U8DVM10AD varies depending on the operating frequency and usage scenario. Refer to the i.MX6UL Applications Processor Datasheet for more information on power consumption.
