MCIMX6X2AVN08AC - NXP

Description: Processors - Application Specialized i.MX 6 series 32-bit MPU, ARM Cortex-A9 core, 8MHz, ARM Cortex-M4 core, 166MHz, BGA 400

Download MCIMX6X2AVN08AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6X2AVN08AC - NXP - PCB symbol
click to zoom
PCB Footprints

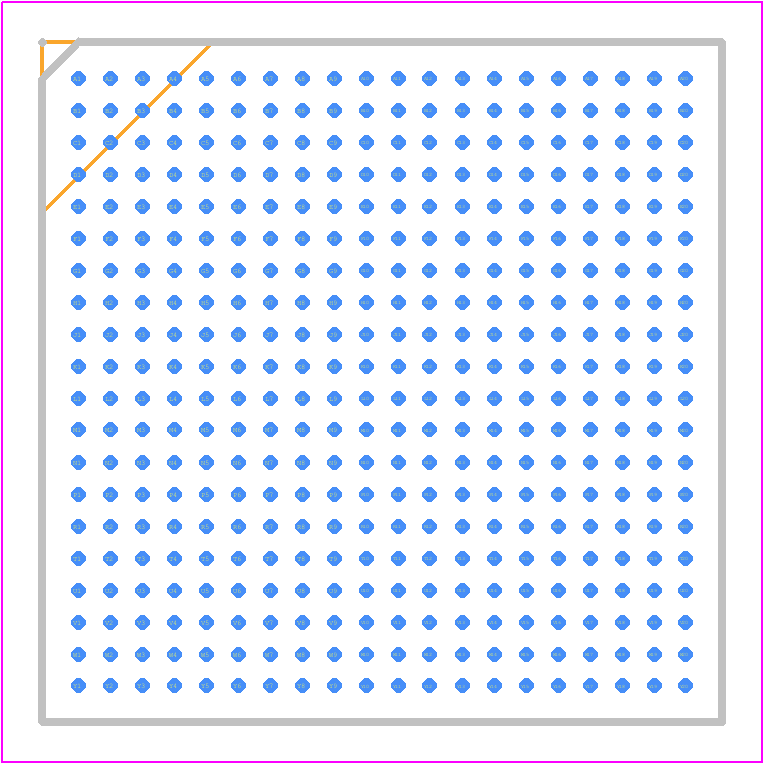

MCIMX6X2AVN08AC - NXP PCB footprint - BGA - BGA - SOT1512-1
click to zoom
3D Models
MCIMX6X2AVN08AC - NXP - 3D model - BGA - SOT1512-1
click to zoom

MCIMX6X2AVN08AC Details

  • Manufacturer Part Number:

    MCIMX6X2AVN08AC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6X2AVN08AC Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_LOW, and then the core voltage (VDD_CORE). This ensures that the internal voltage regulators are properly enabled and the device boots up correctly.
  • The clock sources for the MCIMX6X2AVN08AC can be configured using the Clock Controller Module (CCM). The CCM allows you to select from various clock sources, such as the external oscillator, PLL, or internal clock, and configure the clock frequencies and dividers.
  • The maximum operating temperature range for the MCIMX6X2AVN08AC is -40°C to 105°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The MCIMX6X2AVN08AC supports secure boot through the Boot Mode Controller (BMC). You can implement secure boot by configuring the BMC to boot from a secure source, such as a secure boot ROM or a trusted external memory device, and using cryptographic algorithms to authenticate the boot process.
  • The MCIMX6X2AVN08AC has a 32-bit DDR3 interface that can support up to 2GB of DDR3 memory. Additionally, it has a 16-bit NAND flash interface that can support up to 128MB of NAND flash memory.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX6X2AVN08AC Overview

Use the download button to access the MCIMX6X2AVN08AC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
