MCIMX6X2CVN08AC - NXP

Description: Microprocessors - MPU i.MX 6 series 32-bit MPU, ARM Cortex-A9 core, 800MHz, ARM Cortex-M4 core, 166MHz, BGA 400

Download MCIMX6X2CVN08AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6X2CVN08AC - NXP - PCB symbol
click to zoom
PCB Footprints

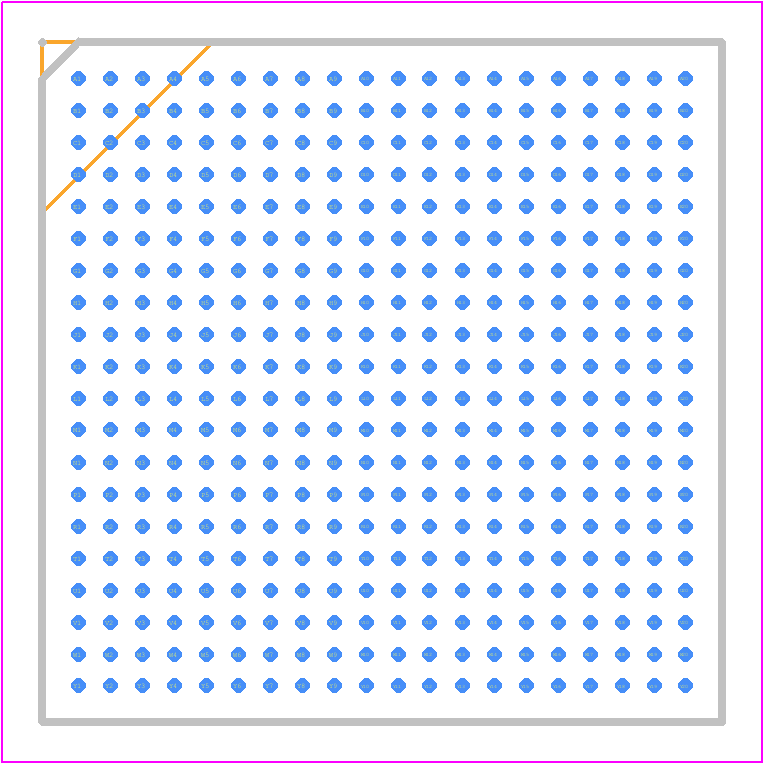

MCIMX6X2CVN08AC - NXP PCB footprint - BGA - BGA - SOT1512-1
click to zoom
3D Models
MCIMX6X2CVN08AC - NXP - 3D model - BGA - SOT1512-1
click to zoom

MCIMX6X2CVN08AC Details

  • Manufacturer Part Number:

    MCIMX6X2CVN08AC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6X2CVN08AC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6X2CVN08AC is -40°C to 105°C.
  • The clock settings for the MCIMX6X2CVN08AC can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz, and the maximum frequency of the GPU is 532 MHz.
  • The DDR3 interface on the MCIMX6X2CVN08AC can be enabled by configuring the DDR3 PHY registers and the Memory Controller registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6X2CVN08AC varies depending on the operating frequency and voltage. The typical power consumption is around 2-3W at 1.2 GHz and 1.35V.
