MCIMX6Y2DVM05AA - NXP

Description: IC MPU I.MX6 528MHZ 289MAPBGA

Download MCIMX6Y2DVM05AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX6Y2DVM05AA - NXP - PCB symbol
click to zoom
PCB Footprints

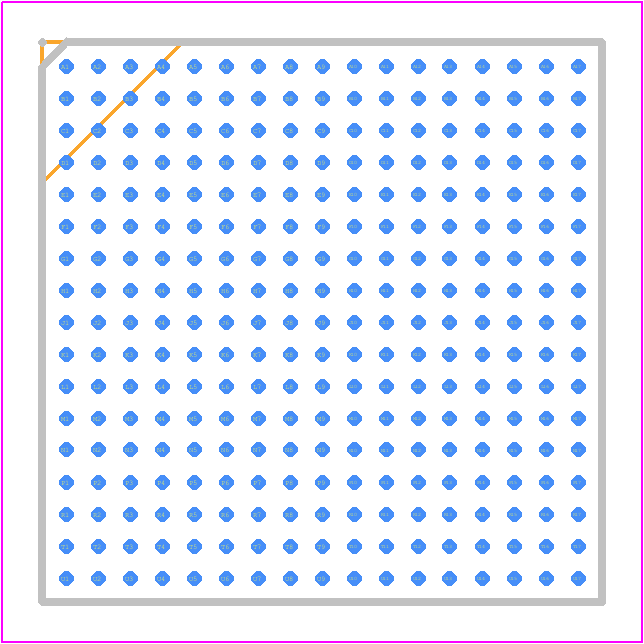

MCIMX6Y2DVM05AA - NXP PCB footprint - BGA - BGA - MAPBGA 14 x 14 mm, 0.8 pitch
click to zoom
3D Models
MCIMX6Y2DVM05AA - NXP - 3D model - BGA - MAPBGA 14 x 14 mm, 0.8 pitch
click to zoom

MCIMX6Y2DVM05AA Details

  • Manufacturer Part Number:

    MCIMX6Y2DVM05AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MAPBGA-289

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2016-10-10

  • Manufacturer:

    NXP Semiconductors

  • JESD-30 Code:

    S-PBGA-B289

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.32 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.275 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6Y2DVM05AA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6Y2DVM05AA is -40°C to 105°C.
  • The clock settings for the MCIMX6Y2DVM05AA can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz, and the maximum frequency of the GPU is 532 MHz.
  • The HDMI interface on the MCIMX6Y2DVM05AA can be enabled by configuring the HDMI PHY and controller registers. Refer to the i.MX6 Dual/Quad Applications Processor Reference Manual for more information.
  • The power consumption of the MCIMX6Y2DVM05AA varies depending on the operating frequency and usage scenario. Refer to the i.MX6 Dual/Quad Applications Processor Datasheet for more information on power consumption.
