MCIMX7D2DVM12SC - NXP

Description: SOC i.MX 7Dual ARM Cortex A7/ARM Cortex M4 541-Pin LFBGA Tray

Download MCIMX7D2DVM12SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX7D2DVM12SC - NXP - PCB symbol
click to zoom
PCB Footprints

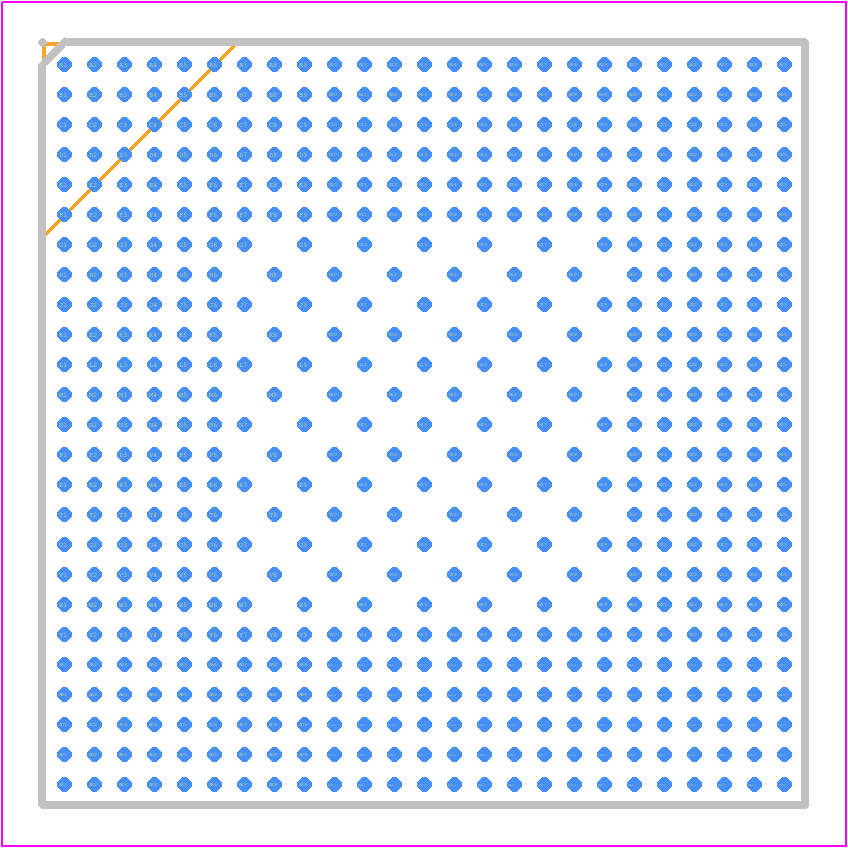

MCIMX7D2DVM12SC - NXP PCB footprint - BGA - BGA - MCIMX7D2DVM12SC
click to zoom
3D Models
MCIMX7D2DVM12SC - NXP - 3D model - BGA - MCIMX7D2DVM12SC
click to zoom

MCIMX7D2DVM12SC Details

  • Manufacturer Part Number:

    MCIMX7D2DVM12SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-541

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

MCIMX7D2DVM12SC Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the other power rails. This ensures that the internal voltage regulators are powered up in the correct order.
  • The clock tree can be configured using the Clock Controller (CCM) module. The CCM module allows you to configure the clock sources, dividers, and multiplexers to generate the required clock signals for the system.
  • The maximum operating temperature range for the MCIMX7D2DVM12SC is -40°C to 105°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
  • Secure boot can be implemented using the Boot ROM and the High-Assurance Boot (HAB) mechanism. The Boot ROM verifies the authenticity of the boot loader and the operating system, ensuring that only authorized code is executed on the device.
  • The maximum frequency for the DDR3L interface on the MCIMX7D2DVM12SC is 1066 MT/s. However, the actual frequency may vary depending on the specific DDR3L memory module used and the system design.
