MCIMX7D5EVM10SD - NXP

Description: i.MX 7Dual SOC featuring an ARM Cortex A7 for connecting peripherals

Download MCIMX7D5EVM10SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

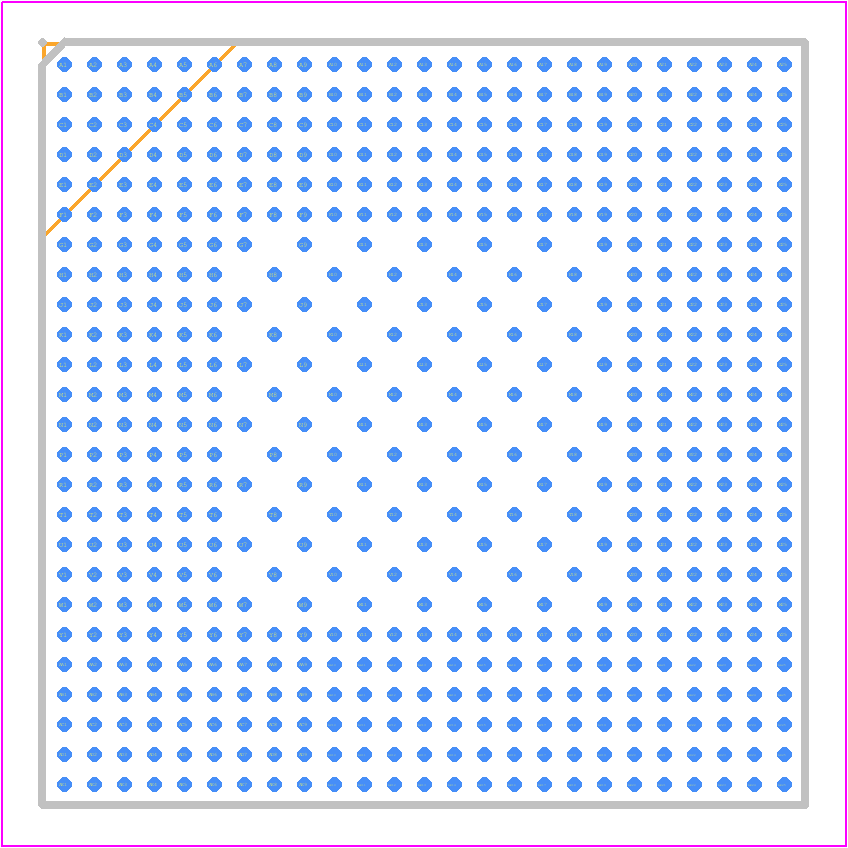

MCIMX7D5EVM10SD - NXP PCB footprint - BGA - BGA - SOT1525-1
click to zoom
3D Models
MCIMX7D5EVM10SD - NXP  - 3D model - BGA - SOT1525-1
click to zoom

MCIMX7D5EVM10SD Details

  • Manufacturer Part Number:

    MCIMX7D5EVM10SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-541

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B541

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    541

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA541,25X25,29

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.42 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.225 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX7D5EVM10SD Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the VDD_LOW. This ensures that the internal voltage regulators are powered up in the correct order.
  • The clock settings can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock tree that allows for dynamic clock frequency changes. Refer to the MCIMX7D5EVM10SD reference manual for detailed information on clock configuration.
  • The maximum operating temperature range for the MCIMX7D5EVM10SD is -40°C to 105°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
  • Secure boot can be implemented using the High-Assurance Boot (HAB) feature on the MCIMX7D5EVM10SD. HAB provides a secure boot mechanism that ensures the authenticity and integrity of the boot process. Refer to the MCIMX7D5EVM10SD reference manual for detailed information on implementing secure boot.
  • The MCIMX7D5EVM10SD can support up to 4GB of RAM. However, the actual amount of RAM that can be used depends on the specific use case and system design.
