Part Image

MCIMX7D7DVK10SD - NXP

Description: SOC i.MX 7Dual ARM Cortex A7/ARM Cortex M4 488-Pin TFBGA Tray

Download MCIMX7D7DVK10SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

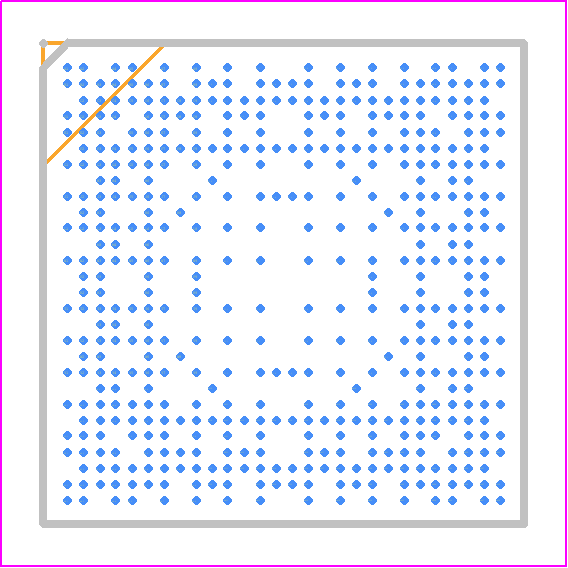

MCIMX7D7DVK10SD - NXP PCB footprint - BGA - BGA - 12×12 mm BGA
click to zoom
3D Models
MCIMX7D7DVK10SD - NXP  - 3D model - BGA - 12×12 mm BGA
click to zoom

MCIMX7D7DVK10SD Details

  • Manufacturer Part Number:

    MCIMX7D7DVK10SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-488

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B488

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    488

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA488,28X28,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.225 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX7D7DVK10SD Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the other power rails. This ensures that the internal voltage regulators are powered up in the correct order.
  • The clock tree can be configured using the Clock Controller (CCM) module. The CCM module allows you to configure the clock sources, dividers, and multiplexers to generate the required clock frequencies for the various peripherals and interfaces.
  • The maximum operating frequency of the Cortex-A7 core is 1.2 GHz. However, the actual operating frequency may be lower depending on the specific use case and thermal constraints.
  • The DDR3L memory interface can be used by configuring the DDR3L controller in the System Controller (SYS_CTRL) module. The DDR3L controller supports up to 2GB of DDR3L memory and operates at a frequency of up to 1066 MT/s.
  • The MCIMX7D7DVK10SD has multiple boot modes, including boot from eMMC, SD card, NAND flash, and serial download mode. These boot modes allow the device to boot from different sources and provide flexibility in the boot process.
