Part Image

MCIMX7S3EVK08SC - NXP

Description: Processors - Application Specialized i.MX 7Solo:1x Cortex A7, 1x USB 2.0 OTG with PHY, 2x SDIO/MMC, Ethernet, Security

Download MCIMX7S3EVK08SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

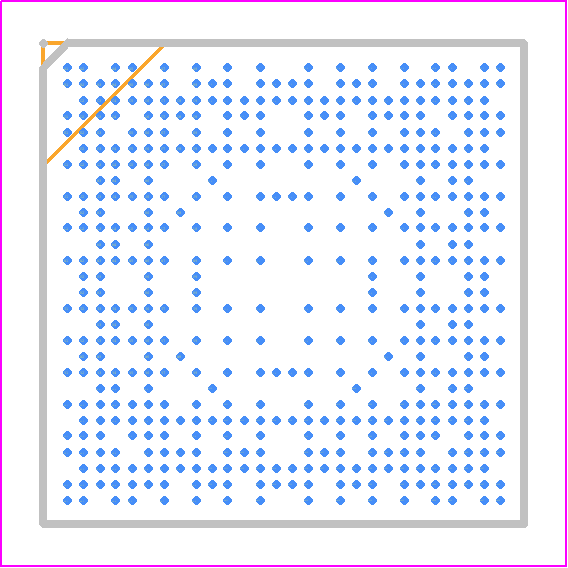

MCIMX7S3EVK08SC - NXP PCB footprint - BGA - BGA - 488-TFBGA
click to zoom
3D Models
MCIMX7S3EVK08SC - NXP  - 3D model - BGA - 488-TFBGA
click to zoom

MCIMX7S3EVK08SC Details

  • Manufacturer Part Number:

    MCIMX7S3EVK08SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FBGA-488

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-05-12

  • Manufacturer:

    NXP Semiconductors

  • Risk Rank:

    8.24

  • YTEOL:

    5.5

  • Additional Feature:

    SEATED-HGT CALCULATED

  • Address Bus Width:

    16

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B488

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    488

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Speed:

    800 MHz

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC
