MCIMX7U5DVP07SC - NXP

Description: NXP - MCIMX7U5DVP07SC - Microprocessor, i.MX Family i.MX 7ULP Series, 32bit, 720MHz, MAPBGA-393

Download MCIMX7U5DVP07SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX7U5DVP07SC - NXP - PCB symbol
click to zoom
PCB Footprints

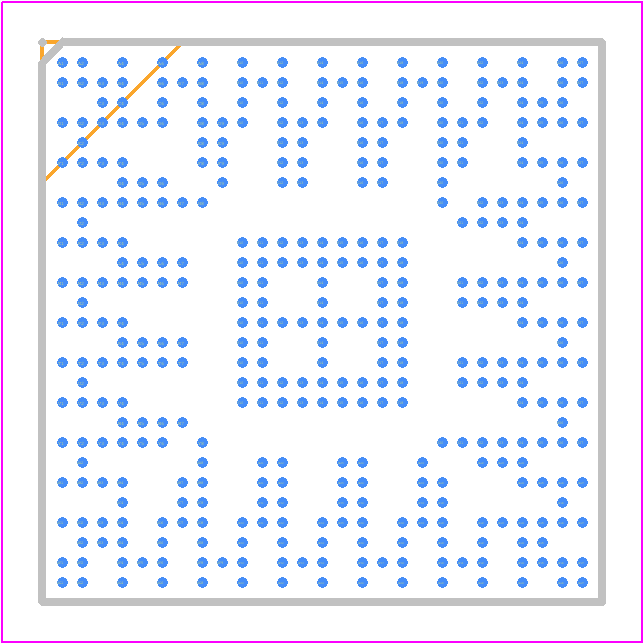

MCIMX7U5DVP07SC - NXP PCB footprint - BGA - BGA - MAPBGA-393
click to zoom
3D Models
MCIMX7U5DVP07SC - NXP - 3D model - BGA - MAPBGA-393
click to zoom

MCIMX7U5DVP07SC Details

  • Manufacturer Part Number:

    MCIMX7U5DVP07SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2019-06-21

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX7U5DVP07SC Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDD_HIGH first, followed by VDD_SOC, and then the other power rails. This ensures that the internal voltage regulators are powered up in the correct order.
  • The clock tree can be configured using the Clock Controller (CCM) module. The CCM module allows you to configure the clock sources, dividers, and multiplexers to generate the required clock frequencies for the CPU, peripherals, and other modules.
  • The maximum operating temperature range for the MCIMX7U5DVP07SC is -40°C to 105°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
  • Secure boot can be implemented using the Boot Mode Controller (BMC) and the Fuse Box (FB) modules. The BMC module allows you to configure the boot mode, while the FB module stores the boot configuration and security settings.
  • The maximum frequency for the DDR3L interface on the MCIMX7U5DVP07SC is 1066 MT/s. However, the actual frequency may vary depending on the specific DDR3L memory module used and the system design.
