MCIMX7U5DVP07SD - NXP

Description: Processors - Application Specialized i.MX 7ULP MPU, ARM A7+M4

Download MCIMX7U5DVP07SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCIMX7U5DVP07SD - NXP - PCB symbol
click to zoom
PCB Footprints

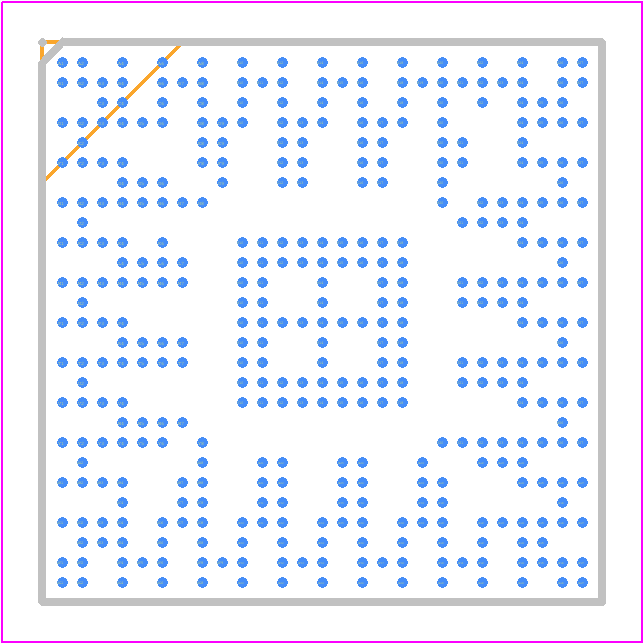

MCIMX7U5DVP07SD - NXP PCB footprint - BGA - BGA - SOT1879-2
click to zoom
3D Models
MCIMX7U5DVP07SD - NXP - 3D model - BGA - SOT1879-2
click to zoom

MCIMX7U5DVP07SD Details

  • Manufacturer Part Number:

    MCIMX7U5DVP07SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5.3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX7U5DVP07SD Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the core voltage (VDD_CORE) and then the I/O voltage (VDD_IO). This ensures that the internal voltage regulators are properly enabled before the I/O pins are powered.
  • The clock sources can be configured using the Clock Controller (CCM) module. The CCM module allows you to select from various clock sources, such as the internal oscillator, external oscillator, or PLL. You can also configure the clock frequency and dividers using the CCM registers.
  • The maximum operating temperature range for the MCIMX7U5DVP07SD is -40°C to 105°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The MCIMX7U5DVP07SD has a built-in Secure Boot mechanism that uses a combination of hardware and software to ensure the authenticity and integrity of the boot process. You can implement secure boot by using the Boot Mode Controller (BMC) module and configuring the boot fuses to enable secure boot. You will also need to generate and sign the boot image using the NXP Code Signing Tool.
  • The MCIMX7U5DVP07SD has 512 KB of on-chip RAM and 1 GB of on-chip flash memory. Additionally, it has interfaces for external RAM and flash memory, allowing you to expand the memory capacity as needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCIMX7U5DVP07SD Overview

Use the download button to access the MCIMX7U5DVP07SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCIMX, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
