The recommended land pattern for MCMNP2065-TP is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
The thermal pad on the MCMNP2065-TP should be connected to a solid copper plane on the PCB to ensure good thermal dissipation. A thermal via array can be used to connect the thermal pad to the copper plane, and a thermal interface material (TIM) can be used to improve heat transfer.
The maximum operating temperature range for MCMNP2065-TP is -40°C to +125°C. However, the device can be operated up to 150°C for short periods of time during soldering or other manufacturing processes.
To ensure the reliability of the MCMNP2065-TP in high-reliability applications, it is recommended to follow proper PCB design and manufacturing guidelines, use a robust soldering process, and perform thorough testing and inspection of the assembled boards.
Yes, the MCMNP2065-TP can be used in high-vibration environments, but it is recommended to follow proper PCB design and manufacturing guidelines to ensure the component is securely attached to the board. Additionally, the use of underfill or potting compounds can help to improve the component's resistance to vibration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCMNP2065-TP Overview

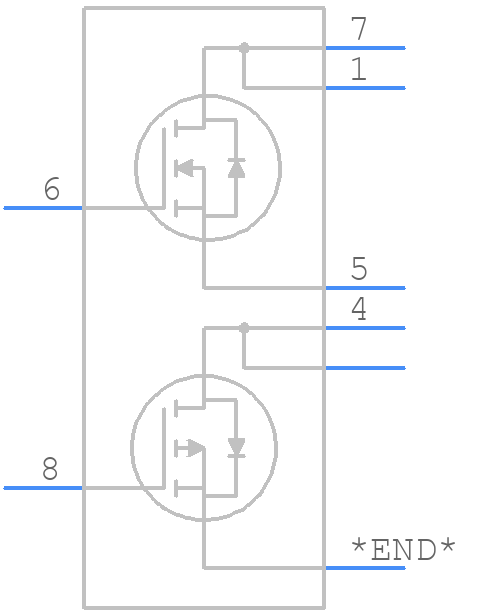

Use the download button to access the MCMNP2065-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCMNP,
or try a keyword search, such as Power Field-Effect Transistors
