MCMNP2065A-TP - MCC

Description: Mosfet Array 20V 6A (Ta), 4A (Ta) 2W Surface Mount DFN2020-6L

Download MCMNP2065A-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

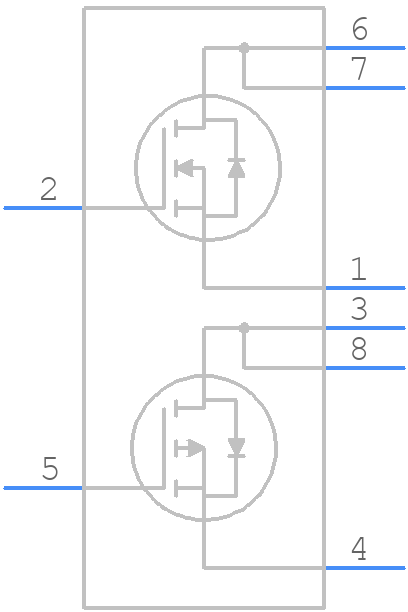

MCMNP2065A-TP - MCC - PCB symbol
click to zoom
PCB Footprints
MCMNP2065A-TP - MCC PCB footprint - Other - Other - MCMNP2065A-TP
click to zoom

MCMNP2065A-TP Details

  • Manufacturer Part Number:

    MCMNP2065A-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    5

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    6 A

  • Drain-source On Resistance-Max:

    0.051 Ω

MCMNP2065A-TP Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MCMNP2065A-TP is -40°C to 125°C.
  • Yes, MCMNP2065A-TP is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The moisture sensitivity level (MSL) of MCMNP2065A-TP is MSL 3, which means it can be exposed to a maximum of 168 hours of humidity before it must be soldered.
  • Yes, MCMNP2065A-TP is AEC-Q101 qualified, which means it meets the Automotive Electronics Council's standards for reliability and performance in automotive applications.
  • The recommended soldering temperature profile for MCMNP2065A-TP is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
