MCMX100D6 - CRYDOM

Description: Solid State Relays - PCB Mount SSR SPST-NO 6A SIP 100VDC OUT.,.

Download MCMX100D6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

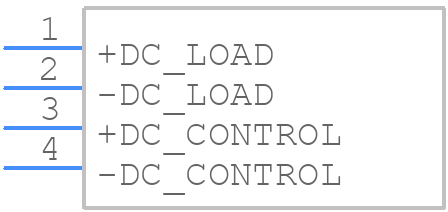

Symbol
MCMX100D6 - CRYDOM - PCB symbol
click to zoom
PCB Footprints
MCMX100D6 - CRYDOM PCB footprint - Other - Other - MCMX100D6-2
click to zoom
3D Models
MCMX100D6 - CRYDOM - 3D model - Other - MCMX100D6-2
click to zoom

MCMX100D6 Details

  • Manufacturer Part Number:

    MCMX100D6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SIP-4

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    6 A

  • On-state Resistance-Max:

    0.04 Ω

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

MCMX100D6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCMX100D6 is -40°C to 85°C.
  • Yes, the MCMX100D6 is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Crydom recommends a thermal pad on the bottom of the device, and a PCB layout that allows for good airflow and heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • Follow the recommended soldering profile and temperature guidelines provided in the datasheet. Use a solder with a melting point above 217°C, and ensure the solder joints are clean and free of oxidation.
  • The MCMX100D6 can withstand surge currents up to 100 A for 10 ms, but this may vary depending on the specific application and operating conditions.
