MCNDA-12V - Multicomp Pro

Description: DIP / SIP Switch, 12 Circuits, Slide, Through Hole, SPST-NO, 24 V, 25 mA

Download MCNDA-12V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MCNDA-12V model

Email notifications will be applied after download.

Send part feedback

Symbol

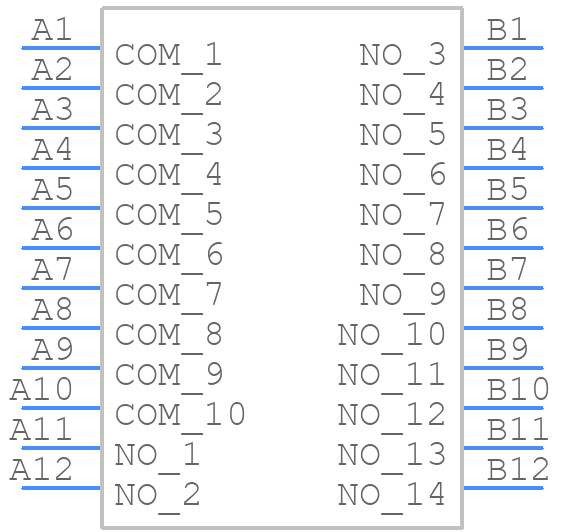

MCNDA-12V - Multicomp Pro - PCB symbol

PCB Footprints

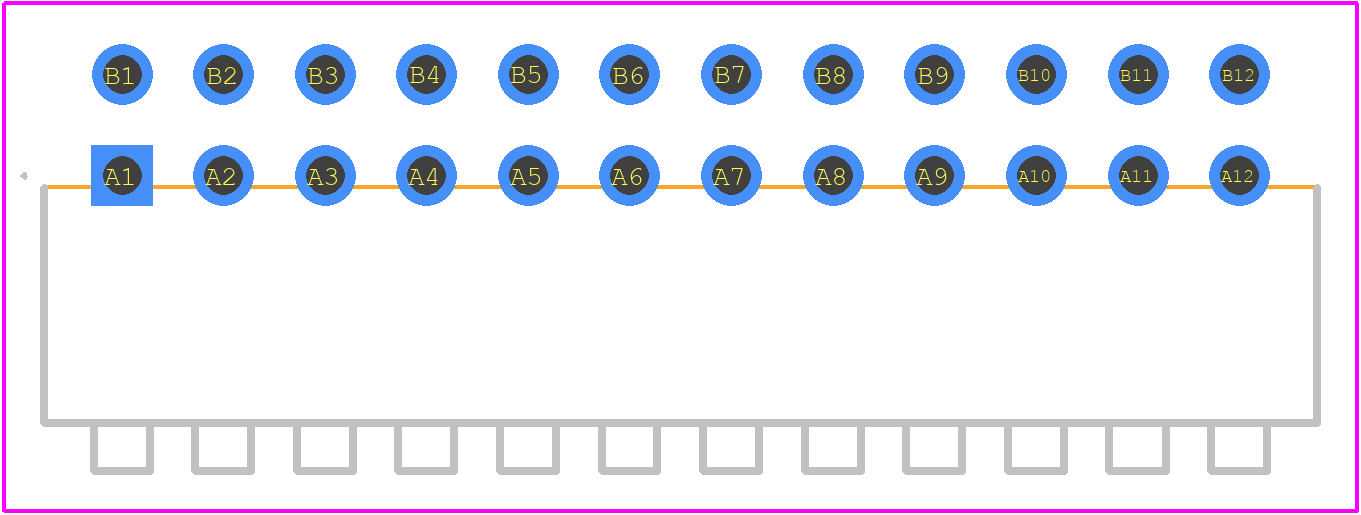

MCNDA-12V - Multicomp Pro PCB footprint - Other - Other - MCNDA-12V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCNDA-12V
Part Number MCNDA-12V
Manufacturer Multicomp Pro
Pin Count 24
Part Category Switch
Package Category Other
Footprint Name Other - MCNDA-12V-1
Released Date Oct 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCNDA-12V Details

Manufacturer Part Number:
MCNDA-12V
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
SPC Multicomp
Switch Type:
SLIDE DIP SWITCH
