MCNDS-05V - Multicomp Pro

Description: DIP / SIP Switch, 5 Circuits, Slide, Through Hole, SPST-NO, 24 V, 25 mA

Download MCNDS-05V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MCNDS-05V model

Email notifications will be applied after download.

Send part feedback

Symbol

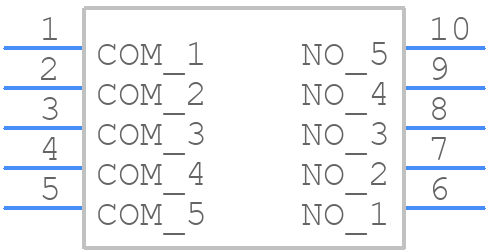

MCNDS-05V - Multicomp Pro - PCB symbol

PCB Footprints

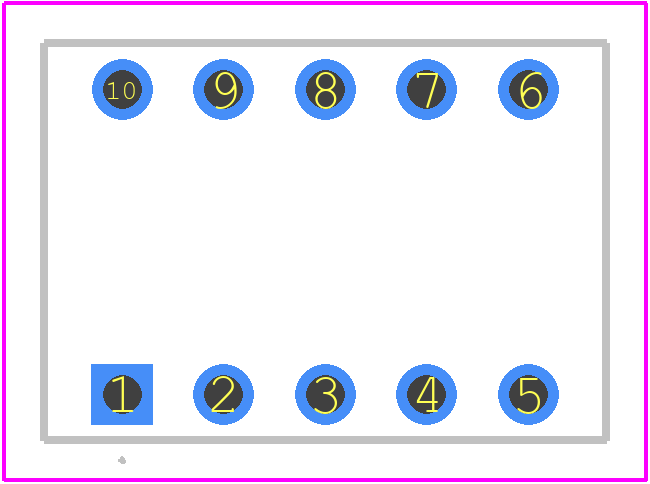

MCNDS-05V - Multicomp Pro PCB footprint - Other - Other - MCNDS-05V

3D Models

MCNDS-05V - Multicomp Pro - 3D model - Other - MCNDS-05V

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCNDS-05V
Part Number MCNDS-05V
Manufacturer Multicomp Pro
Pin Count 10
Part Category Switch
Package Category Other
Footprint Name Other - MCNDS-05V
Released Date Jan 29, 2024
Last Modified Date Jan 30, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MCNDS-05V Details

Manufacturer Part Number:
MCNDS-05V
Manufacturer:
SPC Multicomp

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MCNDS-05V Overview

Use the download button to access the MCNDS-05V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCNDS, or try a keyword search, such as DIP Switches
