MCP1252-ADJI/MS - Microchip

Description: 120mA Reg Charge Pump,Adj,MCP1252-ADJ

Download MCP1252-ADJI/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

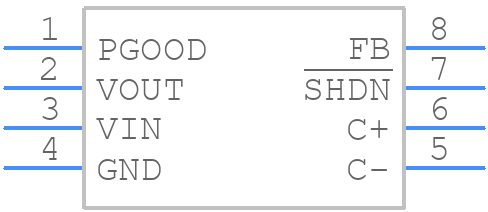

MCP1252-ADJI/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1252-ADJI/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom
3D Models
MCP1252-ADJI/MS - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom

MCP1252-ADJI/MS Details

  • Manufacturer Part Number:

    MCP1252-ADJI/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.15 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    780 kHz

  • Technology:

    MOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP1252-ADJI/MS Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding scheme, using a solid ground plane, and keeping analog and digital traces separate to minimize noise. Additionally, use a 0.1uF decoupling capacitor between VDD and VSS, and a 10uF capacitor between VREF and GND.
  • To ensure accurate VREF output, use a high-quality external capacitor (e.g., 10uF) between VREF and GND, and ensure that the capacitor is placed close to the VREF pin. Also, avoid loading the VREF pin with high-impedance circuits.
  • The recommended input impedance for the analog input channels is 1kΩ to 10kΩ. This ensures that the input signal is not attenuated and that the ADC can accurately convert the input voltage.
  • Use external voltage clamping diodes (e.g., 1N4148) or a voltage limiter circuit to protect the analog input channels from overvoltage conditions. Ensure that the clamping voltage is within the absolute maximum rating of the device (VDD + 0.3V).
  • The recommended clock frequency for the MCP1252-ADJI/MS is between 32 kHz and 1 MHz. A higher clock frequency increases the conversion rate, but also increases power consumption. A typical conversion rate is 200 ksps at a clock frequency of 500 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1252-ADJI/MS Overview

Use the download button to access the MCP1252-ADJI/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP12, or try a keyword search, such as Switching Regulator or Controllers
