MCP14A0153-E/MS - Microchip

Description: Microchip MCP14A0153-E/MS, Dual MOSFET Power Driver 1.5A, 4.5 → 18 V, Dual Inverting, 8-Pin MSOP

Download MCP14A0153-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

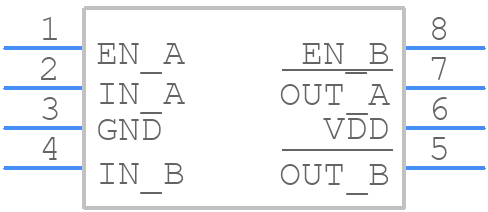

MCP14A0153-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A0153-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MS MSOP
click to zoom
3D Models
MCP14A0153-E/MS - Microchip - 3D model - Small Outline Packages - 8 Lead MS MSOP
click to zoom

MCP14A0153-E/MS Details

  • Manufacturer Part Number:

    MCP14A0153-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.055 µs

  • Turn-on Time:

    0.055 µs

  • Width:

    3 mm

MCP14A0153-E/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the Microchip website offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and thermal management guidelines in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or thermal pads to improve heat dissipation. It's also essential to follow proper PCB design and layout practices to minimize thermal resistance.
  • The MCP14A0153-E/MS has built-in ESD protection and latch-up prevention measures. However, it's still essential to follow proper ESD handling and storage procedures to prevent damage. Additionally, ensure that the device is properly connected to a ground plane and that the PCB design includes adequate ESD protection and latch-up prevention measures.
  • Yes, the MCP14A0153-E/MS can be used in non-standard applications, but it's essential to carefully review the device's datasheet and application notes to ensure that it meets the specific requirements of your application. You may also need to consult with Microchip's technical support team or a qualified engineer to ensure that the device is used correctly and safely.
  • To troubleshoot issues with the MCP14A0153-E/MS, start by reviewing the device's datasheet and application notes to ensure that it's being used correctly. Check the PCB design and layout for any errors or omissions, and verify that the device is properly connected and powered. If the issue persists, consult with Microchip's technical support team or a qualified engineer for further assistance.
