Microchip provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
To ensure reliable operation over the full temperature range, follow the recommended operating conditions, use a suitable thermal management strategy, and consider the device's thermal characteristics, such as junction temperature and thermal resistance.
Using a different input voltage than the recommended 5V may affect the device's performance, power consumption, and reliability. Consult the datasheet for specific voltage ranges and limitations, and consider the impact on the device's internal voltage regulators and power management.
To troubleshoot issues with the device's output signal, use a oscilloscope to verify the signal's amplitude, frequency, and waveform. Check the input signal, power supply, and PCB layout for any issues, and consult the datasheet for specific troubleshooting guidelines.
The MCP14A0304T-E/SN has built-in ESD protection and latch-up prevention measures, such as input clamps and internal diodes. However, it's still recommended to follow proper ESD handling and PCB design guidelines to prevent damage and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP14A0304T-E/SN Overview

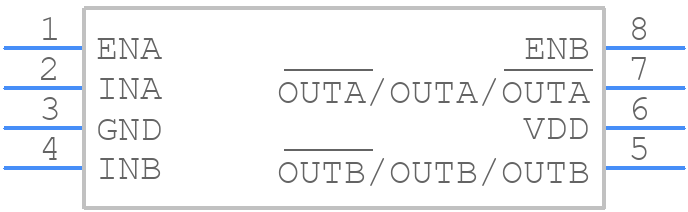

Use the download button to access the MCP14A0304T-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP14,
or try a keyword search, such as MOSFET Drivers
