Microchip provides a recommended PCB layout in the device's datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, Microchip's application note AN1149 provides more detailed information on PCB layout considerations for high-frequency devices like the MCP14A0902-E/MS.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, Microchip provides thermal derating guidelines in the datasheet, which should be followed to ensure the device operates within its recommended temperature range.
The MCP14A0902-E/MS has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Microchip recommends using ESD-safe materials, handling devices by the body or pins, and storing devices in ESD-protective packaging.
While the MCP14A0902-E/MS is optimized for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to consult with Microchip's application engineers or perform thorough simulations to ensure the device meets the system's requirements.
Microchip provides radiation tolerance and latch-up information in the device's datasheet and radiation report. The MCP14A0902-E/MS is designed to meet specific radiation tolerance requirements, and latch-up protection is built-in. However, it's essential to consult with Microchip's application engineers or radiation experts to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP14A0902-E/MS Overview

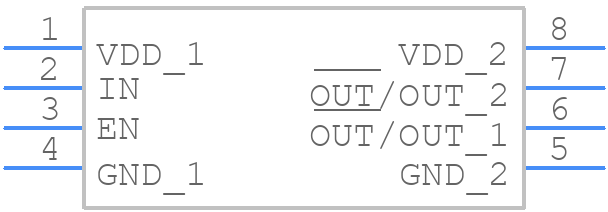

Use the download button to access the MCP14A0902-E/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP14,
or try a keyword search, such as MOSFET Drivers
