MCP14A1202-E/MS - Microchip

Description: Gate Drivers 12.0A Single Non-Inverting MOSFET Driver, Low Threshold with Enable Pin, MSOP8

Download MCP14A1202-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

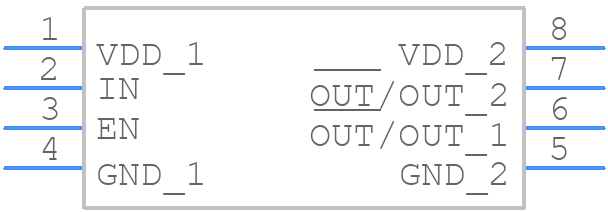

MCP14A1202-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A1202-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom
3D Models
MCP14A1202-E/MS - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom

MCP14A1202-E/MS Details

  • Manufacturer Part Number:

    MCP14A1202-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Date Of Intro:

    2019-07-11

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    12 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.072 µs

  • Turn-on Time:

    0.072 µs

  • Width:

    3 mm

MCP14A1202-E/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, Microchip's application note AN1149 provides more detailed information on PCB layout considerations for high-frequency devices like the MCP14A1202-E/MS.
  • The MCP14A1202-E/MS requires a stable voltage supply and proper biasing to operate correctly. Ensure that the device is powered from a low-noise, regulated voltage source, and that the input and output pins are properly terminated. Refer to the datasheet for specific biasing requirements and recommendations.
  • The MCP14A1202-E/MS is specified to operate up to 1.2 GHz, but the actual operating frequency may be limited by the specific application and PCB layout. It's essential to evaluate the device's performance in the target application and ensure that it meets the required specifications.
  • The MCP14A1202-E/MS is a high-power device that requires proper thermal management to prevent overheating. Ensure that the device is mounted on a thermally conductive PCB material, and that there is adequate airflow around the device. Consider using thermal vias, heat sinks, or other thermal management techniques to keep the device within its recommended operating temperature range.
  • The MCP14A1202-E/MS is a sensitive device that requires proper ESD protection to prevent damage. Ensure that the device is handled and stored in an ESD-safe environment, and that ESD protection devices such as TVS diodes or ESD protection arrays are used in the application circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP14A1202-E/MS Overview

Use the download button to access the MCP14A1202-E/MS schematic symbol, PCB footprint, and 3D model.
