MCP14E5-E/P - Microchip

Description: Microchip MCP14E5-E/P, Dual MOSFET Power Driver 4A, 4.5 → 18 V, 8-Pin PDIP

Download MCP14E5-E/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

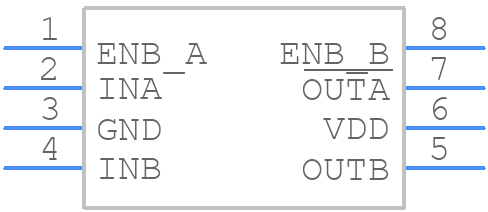

MCP14E5-E/P - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14E5-E/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-LEAD PLASTIC DUAL-LINE
click to zoom
3D Models
MCP14E5-E/P - Microchip - 3D model - Dual-In-Line Packages - 8-LEAD PLASTIC DUAL-LINE
click to zoom

MCP14E5-E/P Details

  • Manufacturer Part Number:

    MCP14E5-E/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PDIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.271 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    5.334 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.11 µs

  • Turn-on Time:

    0.11 µs

  • Width:

    7.62 mm

MCP14E5-E/P Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP14E5-E/P datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, it's recommended to follow general EMI reduction techniques such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary.
  • The MCP14E5-E/P requires a specific biasing and configuration to operate correctly. Refer to the datasheet for the recommended biasing and configuration for your specific application. Additionally, Microchip provides application notes and design guides that can help with this process.
  • The MCP14E5-E/P has a maximum junction temperature of 150°C. To ensure it doesn't overheat, follow proper thermal design practices such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Refer to the datasheet for thermal resistance and power dissipation information.
  • The MCP14E5-E/P is a commercial-grade device, but Microchip does offer industrial-grade and automotive-grade versions of the device with enhanced reliability and performance. Additionally, Microchip provides documentation and support for safety-critical applications, such as ASIL and IEC 61508 certifications.
  • Microchip provides a range of resources to help troubleshoot issues with the MCP14E5-E/P, including application notes, FAQs, and technical support. Additionally, using a logic analyzer or oscilloscope can help identify issues with the device's operation.
