MCP14E6-E/SN footprint, schematic symbol and 3D model by Microchip

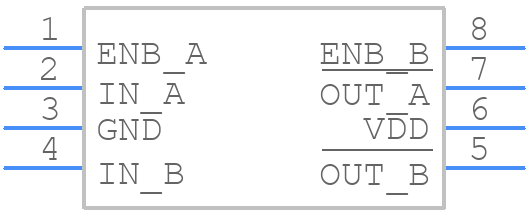

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP14E6-E/SN
Part Number MCP14E6-E/SN
Manufacturer Microchip
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SN
Released Date Jan 4, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCP14E6-E/SN Details

Manufacturer Part Number:
MCP14E6-E/SN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Pin Count:
8
Manufacturer Package Code:
SOIC-8
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
17 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
13
High Side Driver:
YES
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
TOTEM-POLE
Output Peak Current Limit-Nom:
2 A
Output Polarity:
INVERTED
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
1.75 mm
Supply Current-Max:
2.2 mA
Supply Voltage-Max:
18 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
18 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
0.1 µs
Turn-on Time:
0.105 µs
Width:
3.9 mm

MCP14E6-E/SN Frequently Asked Questions (FAQs)

The maximum operating frequency of the MCP14E6-E/SN is 100 kHz, but it can be operated at higher frequencies with reduced output current.
To ensure stable output voltage, it is recommended to use a minimum output capacitance of 1 μF, and to keep the input voltage ripple below 100 mV.
The maximum input voltage that the MCP14E6-E/SN can handle is 15 V, but it is recommended to operate within the specified input voltage range of 4.5 V to 13.2 V for optimal performance.
The MCP14E6-E/SN has built-in overcurrent protection, but it is recommended to add external current limiting resistors or fuses to prevent damage from excessive current.
The MCP14E6-E/SN is rated for operation up to 125°C, but it is recommended to derate the output current and voltage at higher temperatures to ensure reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

MCP14E6-E/SN Overview

Use the download button to access the MCP14E6-E/SN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MCP14, or try a keyword search, such as MOSFET Drivers
