MCP1602-250I/MS - Microchip

Description: Voltage Regulators - Switching Regulators 20MHz 05A Synch-Buck PFM/PWM Reg

Download MCP1602-250I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

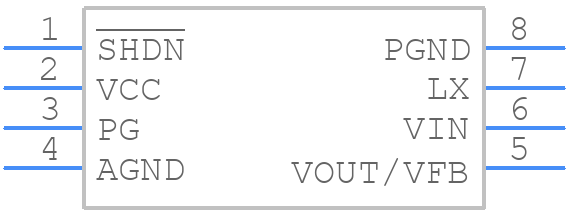

MCP1602-250I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1602-250I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MCP1602-250I/MS - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MCP1602-250I/MS Details

  • Manufacturer Part Number:

    MCP1602-250I/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Additional Feature:

    IT CAN ALSO OPERATE WITH PULSE FREQUENCY MODULATION

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    2.5625 V

  • Output Voltage-Min:

    2.4375 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP1602-250I/MS Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP1602 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, it's recommended to use a solid ground plane, keep analog and digital signals separate, and use decoupling capacitors to minimize noise.
  • The MCP1602-250I/MS requires a single 2.5V power supply. It's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized to prevent latch-up or other issues.
  • The maximum input voltage that can be applied to the MCP1602-250I/MS is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 2.2V to 2.7V to ensure optimal performance and prevent damage.
  • The output voltage of the MCP1602-250I/MS can be calculated using the following formula: VOUT = (VIN x (R1 + R2) / R2), where VIN is the input voltage, R1 and R2 are the resistors in the feedback network, and VOUT is the desired output voltage.
  • The typical output noise of the MCP1602-250I/MS is around 10uVrms. To minimize output noise, it's recommended to use a low-noise input voltage, keep the PCB layout clean and well-grounded, and use decoupling capacitors to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1602-250I/MS Overview

Use the download button to access the MCP1602-250I/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
