MCP16252T-I/MNY - Microchip

Description: Switching Voltage Regulators Low Iq Boost Switching Regulator, Input to Output Bypass

Download MCP16252T-I/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

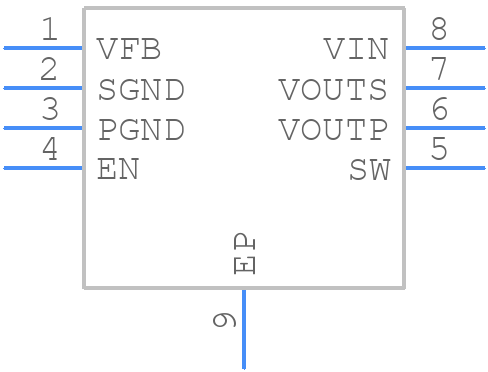

MCP16252T-I/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16252T-I/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MNY)
click to zoom
3D Models
MCP16252T-I/MNY - Microchip - 3D model - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MNY)
click to zoom

MCP16252T-I/MNY Details

  • Manufacturer Part Number:

    MCP16252T-I/MNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    0.82 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MCP16252T-I/MNY Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP16252T-I/MNY involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
  • To ensure stability, it's essential to choose the correct output capacitor value and type, and to ensure that the capacitor's ESR (Equivalent Series Resistance) is within the recommended range. Additionally, the input voltage should be stable and within the recommended range.
  • The maximum input voltage that the MCP16252T-I/MNY can handle is 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The MCP16252T-I/MNY is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. A heat sink or thermal pad may be necessary to ensure reliable operation.
  • To troubleshoot issues with the MCP16252T-I/MNY, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
