MCP16311-E/MS - Microchip

Description: Microchip, MCP16311-E/MS Switching Regulator 1A Adjustable, 2 → 24 V 8-Pin, MSOP

Download MCP16311-E/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

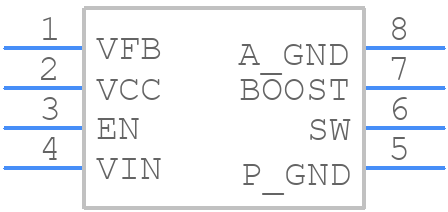

MCP16311-E/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16311-E/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead MS MSOP
click to zoom
3D Models
MCP16311-E/MS - Microchip - 3D model - Small Outline Packages - 8 Lead MS MSOP
click to zoom

MCP16311-E/MS Details

  • Manufacturer Part Number:

    MCP16311-E/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 2 TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.4 V

  • Input Voltage-Nom:

    7 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    2 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MCP16311-E/MS Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient output capacitor value (typically 10uF to 22uF), and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the EN pin can be used to enable or disable the output voltage.
  • The maximum output current capability of the MCP16311-E/MS is 1A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to consult the datasheet and perform thermal calculations to ensure the device operates within its safe operating area.
  • The MCP16311-E/MS has a built-in overcurrent protection feature that can be enabled by connecting a resistor (Roc) between the OC pin and GND. The value of Roc determines the overcurrent threshold. When the output current exceeds the threshold, the device will limit the output current to prevent damage.
  • The EN (Enable) pin is used to enable or disable the output voltage of the MCP16311-E/MS. When the EN pin is pulled high (logic level 1), the output voltage is enabled. When the EN pin is pulled low (logic level 0), the output voltage is disabled, and the device enters a low-power shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16311-E/MS Overview

Use the download button to access the MCP16311-E/MS schematic symbol, PCB footprint, and 3D model.
