![MCP16312T-E/MNY - Microchip - 3D model - Small Outline No-lead - (MN) [TDFN]](https://media.componentsearchengine.com/images/available.svg?v=0.76.2)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCP16312T-E/MNY
- Part Number MCP16312T-E/MNY
- Manufacturer Microchip
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - (MN) [TDFN]
- Released Date Oct 31, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC

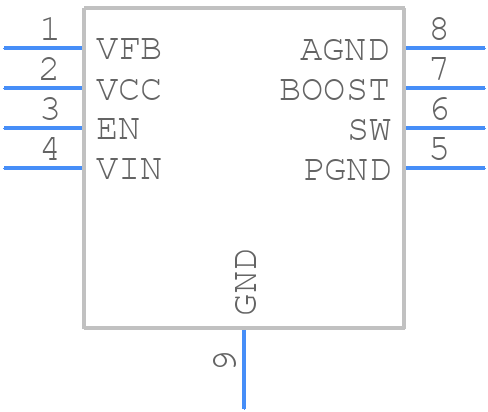

- Pinout / Pin List Click Here (Member Only)
MCP16312T-E/MNY Details
-
Manufacturer Part Number:
MCP16312T-E/MNY
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
8
-
Manufacturer Package Code:
TDFN-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Microchip Technology Inc
-
YTEOL:
14
MCP16312T-E/MNY Frequently Asked Questions (FAQs)
-
A good PCB layout for the MCP16312T-E/MNY involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the output voltage sense lines as short as possible. Additionally, the output voltage should be decoupled with a 10nF capacitor to reduce noise and oscillations.
-
The maximum input voltage that the MCP16312T-E/MNY can handle is 18V. However, it is recommended to operate the device within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
-
The soft-start time of the MCP16312T-E/MNY can be programmed by connecting a capacitor from the SS pin to ground. The soft-start time is proportional to the capacitance value, with a larger capacitance resulting in a longer soft-start time.
-
The EN (Enable) pin on the MCP16312T-E/MNY is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and enters a low-power shutdown mode.
Trust Checks
Community Provided
System Verified
Community Approved
MCP16312T-E/MNY Overview
Use the download button to access the MCP16312T-E/MNY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16,
or try a keyword search, such as Switching Regulator or Controllers
