MCP16361T-E/NMX - Microchip

Description: Switching Voltage Regulators 48V, 2MHz High Current Input Buck Converter with PWM/PFM

Download MCP16361T-E/NMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

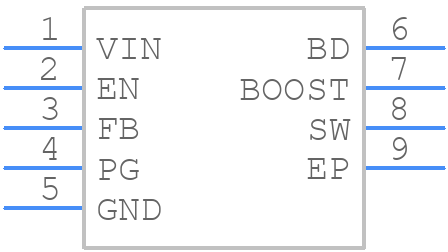

Symbol
MCP16361T-E/NMX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16361T-E/NMX - Microchip PCB footprint - Other - Other - 8-LD VDFN_2021
click to zoom
3D Models
MCP16361T-E/NMX - Microchip - 3D model - Other - 8-LD VDFN_2021
click to zoom

MCP16361T-E/NMX Details

  • Manufacturer Part Number:

    MCP16361T-E/NMX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    48 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP16361T-E/NMX Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP16361T-E/NMX involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
  • The maximum input voltage that the MCP16361T-E/NMX can handle is 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 15V to ensure reliable operation and to prevent damage to the device.
  • The soft-start time of the MCP16361T-E/NMX can be programmed by connecting a capacitor (Css) from the SS pin to ground. The soft-start time (tss) can be calculated using the formula: tss = Css * 1.2 / ISS, where ISS is the soft-start current (typically 10uA).
  • The EN (Enable) pin on the MCP16361T-E/NMX is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. The EN pin can be connected to a logic signal or a switch to control the device's operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16361T-E/NMX Overview

Use the download button to access the MCP16361T-E/NMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
