MCP16362T-E/NMX - Microchip

Description: Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-VDFN (3x3)

Download MCP16362T-E/NMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

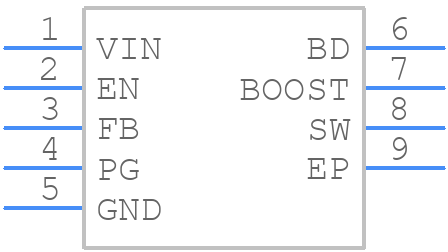

MCP16362T-E/NMX - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16362T-E/NMX - Microchip PCB footprint - Other - Other - MCP16362T-E/NMX-2
click to zoom
3D Models
MCP16362T-E/NMX - Microchip - 3D model - Other - MCP16362T-E/NMX-2
click to zoom

MCP16362T-E/NMX Details

  • Manufacturer Part Number:

    MCP16362T-E/NMX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    48 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP16362T-E/NMX Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stability, it's essential to follow the recommended PCB layout guidelines, use a sufficient input capacitor, and add a compensation capacitor (typically 10nF to 22nF) between the COMP pin and GND. Additionally, ensure that the output capacitor is properly sized and placed close to the output pin.
  • The maximum output current capability of the MCP16362T-E/NMX is 2A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to consult the datasheet and perform thermal calculations to ensure the device can handle the required output current.
  • The MCP16362T-E/NMX is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure the device can operate reliably in the target environment.
  • The soft-start time of the MCP16362T-E/NMX can be programmed by adding a capacitor between the SS pin and GND. The soft-start time is proportional to the capacitor value. A larger capacitor value will result in a longer soft-start time.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16362T-E/NMX Overview

Use the download button to access the MCP16362T-E/NMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
