MCP16364-E/Q8B - Microchip

Description: Input Voltage Range: 4.0V (After Start-up) to 48V • Adjustable Output Voltage Range: 2.0V to 24V • Integrated N-Channel Buck Switch: 500 mΩ • 1A Output Current • 2.2 MHz Fixed Switching Frequency • Shutdown Current: 3 µA Typical • Quiescent Current: 18 µA Typical (Not Switching) • Device Selectable Switching Mode: – Automatic Pulse Frequency Modulation/Pulse Width Modulation (PFM/PWM) Operation - MCP16364 PWM only Mode of Operation - MCP16365 – PWM only Mode of Operation with Switching Frequency D

Download MCP16364-E/Q8B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

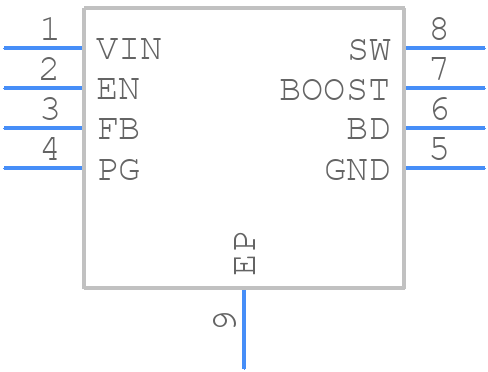

MCP16364-E/Q8B - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16364-E/Q8B - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Very Thin Plastic Dual Flat, No Lead Package (Q8B) - 3x3 mm Body [VDFN]
click to zoom
3D Models
MCP16364-E/Q8B - Microchip - 3D model - Small Outline No-lead - 8-Lead Very Thin Plastic Dual Flat, No Lead Package (Q8B) - 3x3 mm Body [VDFN]
click to zoom

MCP16364-E/Q8B Details

  • Manufacturer Part Number:

    MCP16364-E/Q8B

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    VDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16364-E/Q8B Overview

Use the download button to access the MCP16364-E/Q8B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers
