MCP16411-I/UN - Microchip

Description: Switching Voltage Regulators Low IQ Boost Converter with Programmable Low Battery, PGT and Automatic Input-to-Output Bypass Operation

Download MCP16411-I/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

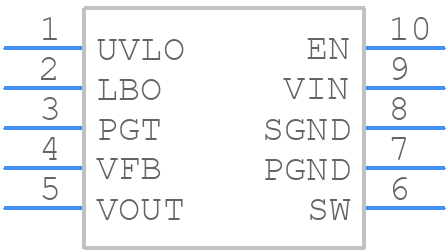

Symbol
MCP16411-I/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16411-I/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]
click to zoom
3D Models
MCP16411-I/UN - Microchip - 3D model - Small Outline Packages - 10-Lead Plastic Micro Small Outline Package (MS) [MSOP]
click to zoom

MCP16411-I/UN Details

  • Manufacturer Part Number:

    MCP16411-I/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    PFM CONTROL MODE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    0.82 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP16411-I/UN Frequently Asked Questions (FAQs)

  • The recommended input capacitor value for the MCP16411 is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
  • To ensure stable operation of the MCP16411 in a noisy environment, it is recommended to use a low-ESR input capacitor, add a noise filter capacitor (e.g. 10nF) between the VIN and GND pins, and use a shielded layout for the PCB. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum output current capability of the MCP16411 is 1A, but it can be limited by the input voltage, output voltage, and thermal considerations. It is recommended to check the device's thermal performance and output current capability in the specific application to ensure reliable operation.
  • The output voltage of the MCP16411 can be adjusted by using an external resistor divider network between the VOUT and GND pins. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin on the MCP16411 is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16411-I/UN Overview

Use the download button to access the MCP16411-I/UN schematic symbol, PCB footprint, and 3D model.
