MCP16414T-I/MN - Microchip

Description: • Input Voltage Range: 0.8V (after Start-up) to 5.25V • Low Device Quiescent Current: 5 µA (typical), PFM Mode (not switching) • Up to 96% Efficiency • 1A Typical Inductor Peak Current Limit: - IOUT > 170 mA at 2V VOUT, 1.2V VIN - IOUT > 200 mA at 3.3V VOUT, 1.5V VIN - IOUT > 600 mA at 5.0V VOUT, 3.6V VIN • Adjustable Output Voltage Range • Automatic Input-to-Output Bypass Operation • Selectable Switching Mode: - PWM operation: 500 kHz (MCP16412/4/6/8) - Automatic PFM/PWM operation (MCP16411/3

Download MCP16414T-I/MN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

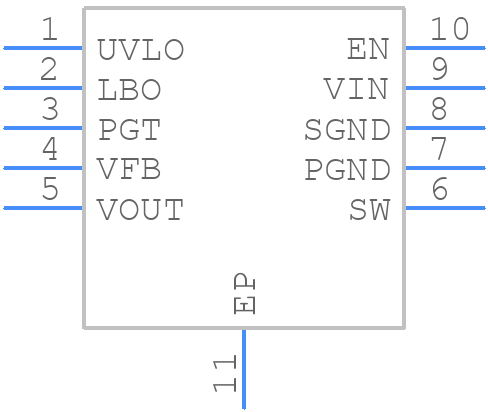

MCP16414T-I/MN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16414T-I/MN - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - MCP79510T-I/MN
click to zoom
3D Models
MCP16414T-I/MN - Microchip - 3D model - Small Outline No-lead - MCP79510T-I/MN
click to zoom

MCP16414T-I/MN Details

  • Manufacturer Part Number:

    MCP16414T-I/MN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    TDFN-10

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    0.82 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP16414T-I/MN Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 6V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation.
  • To ensure the output voltage is stable and accurate, make sure to follow the recommended layout and component selection guidelines in the datasheet. Additionally, use a high-quality output capacitor with low ESR and a sufficient capacitance value to filter out noise and ripple.
  • The minimum input voltage required for the device to operate is 2.7V, as specified in the datasheet. However, the device may not be able to regulate the output voltage accurately below 3V.
  • The MCP16414T-I/MN is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Consult the datasheet for more information on thermal considerations.
  • The output voltage accuracy can be calculated using the formula: Output Voltage Accuracy = (VOUT - VREF) / VREF, where VOUT is the measured output voltage and VREF is the internal reference voltage (1.2V for the MCP16414T-I/MN).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP16414T-I/MN Overview

Use the download button to access the MCP16414T-I/MN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
