MCP16415T-I/UN - Microchip

Description: Switching Voltage Regulators Low IQ Boost Converter with Programmable Low Battery, PG and Automatic Input-to-Output Bypass Operation

Download MCP16415T-I/UN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

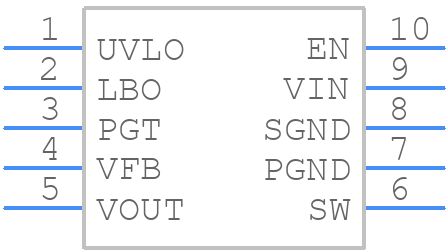

Symbol
MCP16415T-I/UN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP16415T-I/UN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (UN) [MSOP]
click to zoom
3D Models
MCP16415T-I/UN - Microchip - 3D model - Small Outline Packages - (UN) [MSOP]
click to zoom

MCP16415T-I/UN Details

  • Manufacturer Part Number:

    MCP16415T-I/UN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    MSOP-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Additional Feature:

    PFM CONTROL MODE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    0.82 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    575 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP16415T-I/UN Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 6V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation and to prevent damage to the device.
  • To ensure the output voltage is stable and regulated, make sure to follow the recommended layout and component selection guidelines in the datasheet. Additionally, use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value to filter out noise and ripple.
  • The minimum input voltage required for the device to operate is 2.7V, as specified in the datasheet. However, the device may not be able to regulate the output voltage accurately below 3.0V, so it's recommended to use a minimum input voltage of 3.0V or higher for reliable operation.
  • The MCP16415T-I/UN is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation. Consult the datasheet for more information on thermal considerations.
  • The output voltage of the device can be calculated using the formula: VOUT = (R1 / R2) * 1.235V, where R1 and R2 are the resistors connected to the FB pin. Make sure to use the correct values for R1 and R2 to achieve the desired output voltage.
