MCP1642D-33I/MS - Microchip

Description: Switching Voltage Regulators Step-up DC/DC Reg 1 MHz, 1.6A, 3.3Vout

Download MCP1642D-33I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

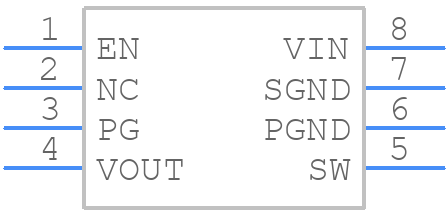

MCP1642D-33I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1642D-33I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom
3D Models
MCP1642D-33I/MS - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Micro Small Outline Package (MS)
click to zoom

MCP1642D-33I/MS Details

  • Manufacturer Part Number:

    MCP1642D-33I/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1150 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

MCP1642D-33I/MS Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 6V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation and to prevent damage to the device.
  • To ensure the output voltage is stable and regulated, make sure to follow the recommended layout and component selection guidelines in the datasheet. This includes using a suitable input capacitor, output capacitor, and feedback resistors. Additionally, ensure that the device is operated within the recommended temperature range and that the input voltage is within the specified range.
  • The minimum input voltage required for the device to operate is 2.7V, as specified in the datasheet. However, the device may not be able to regulate the output voltage accurately below 3V, so it's recommended to use a minimum input voltage of 3V for reliable operation.
  • Yes, the MCP1642D-33I/MS can be used as a low-dropout regulator (LDO) due to its low dropout voltage of 300mV at 150mA output current. However, the device is not designed to be a high-current LDO, and its output current capability is limited to 150mA.
  • The output voltage of the device can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.235V), R1 is the feedback resistor connected between the output and the feedback pin, and R2 is the feedback resistor connected between the feedback pin and ground.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1642D-33I/MS Overview

Use the download button to access the MCP1642D-33I/MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP16, or try a keyword search, such as Switching Regulator or Controllers
