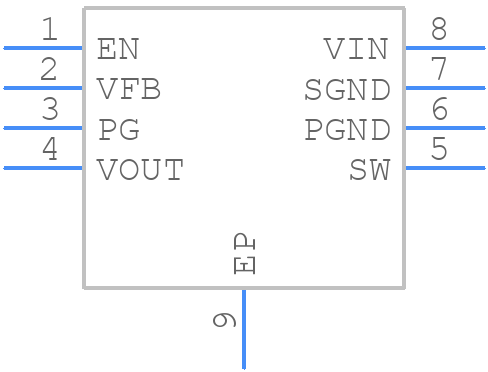

MCP1642DT-ADJI/MC - Microchip

MCP1642DT-ADJI/MC Details

• Manufacturer Part Number:

  MCP1642DT-ADJI/MC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  DFN-8

• Country Of Origin:

  Malaysia, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Additional Feature:

  ADJ OUTPUT FROM 1.8V TO 5.5V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  3 V

• Input Voltage-Min:

  1.5 V

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.8 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  1150 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  2 mm
