MCP1663T-E/MNY - Microchip

Description: Switching Voltage Regulators 32V, 1.8A Switch Non-Synch Boost Reg

Download MCP1663T-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

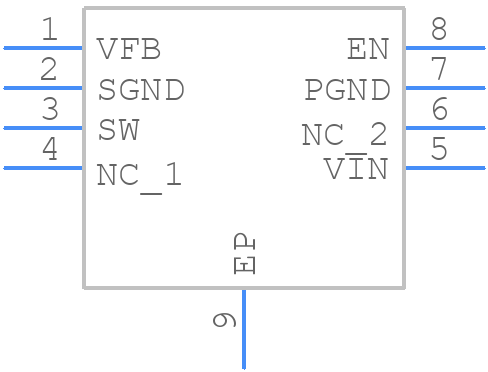

MCP1663T-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1663T-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MN) [TDFN]
click to zoom
3D Models
MCP1663T-E/MNY - Microchip - 3D model - Small Outline No-lead - (MN) [TDFN]
click to zoom

MCP1663T-E/MNY Details

  • Manufacturer Part Number:

    MCP1663T-E/MNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.375 A

  • Output Voltage-Max:

    32 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    575 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

MCP1663T-E/MNY Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP1663T-E/MNY involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor to minimize ringing.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor.
  • The maximum input voltage that the MCP1663T-E/MNY can handle is 18V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
  • The output voltage of the MCP1663T-E/MNY can be calculated using the following formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the internal reference voltage (typically 1.2V).
  • The EN (Enable) pin on the MCP1663T-E/MNY is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power-saving modes or to shut down the device when not in use.
