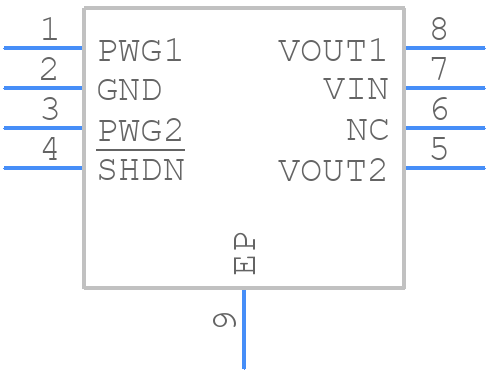

MCP1722-5012H/S7X - Microchip

MCP1722-5012H/S7X Details

• Manufacturer Part Number:

  MCP1722-5012H/S7X

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  SOIC-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  24

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.75 V

• Dropout Voltage2-Max:

  0.75 V

• Input Voltage-Max:

  55 V

• Input Voltage-Min:

  13 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  4.9 mm

• Load Regulation-Max:

  0.025%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.05 A

• Output Current2-Max:

  0.1 A

• Output Voltage1-Max:

  12.24 V

• Output Voltage1-Min:

  11.76 V

• Output Voltage1-Nom:

  12 V

• Output Voltage2-Max:

  5.1 V

• Output Voltage2-Min:

  4.9 V

• Output Voltage2-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm
